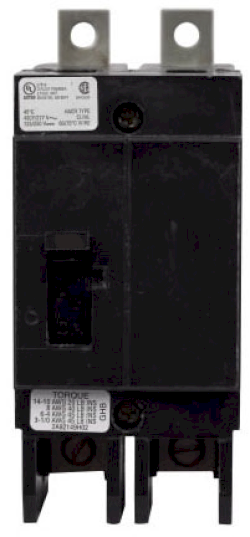

The Cutler Hammer GHB2080 is a molded case circuit breaker from the Series C family, designed for reliable electrical protection. This 2-pole breaker operates at 480 volts with an 80 amp rating and features a 14kA@480V AIC rating. It offers thermal magnetic protection and utilizes a bolt-on connection for secure installation.
Key Features:
✔ Part Number: GHB2080
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 80
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 14kA@480V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ MCM Size: Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 786679111178
✔ GTIN: 00786679111178
✔ Country of Origin: Dominican Republic
✔ Dimensions: 2 in x 4 in x 4 in
✔ Weight: 1.3
✔ Panel Type: Eaton Powerline Panelboards
✔ Standards: CSA Certified, UL Listed
✔ Certification: CSA Certified, UL Listed
