Product Description:

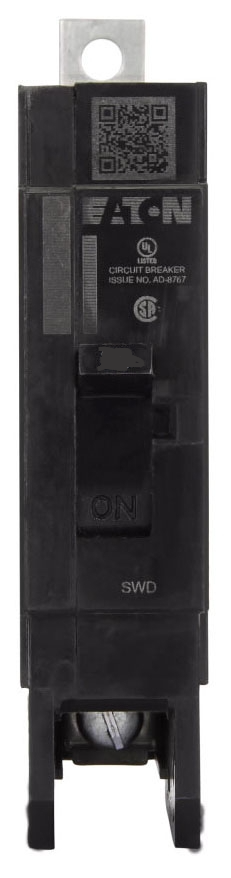

The GHB1040 is a Molded Case Circuit Breaker designed for reliable electrical protection. It is part of the Series C family and features a 1 pole, 480 Volt, 40 amp rating. With a Bolt-on connection and thermal magnetic protection, it ensures safety and efficiency in electrical systems.
Key Features:
✔ Part Number: GHB1040
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: GHB
✔ Voltage: 480
✔ Amperage: 40
✔ Certification: CSA Certified, UL Listed
✔ UPC: 786679023655
✔ GTIN: 00786679023655
✔ Phase: 1
✔ Poles: 1
✔ AIC rating: 14kA@277V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Screw Clamp
✔ Frame Size: 100/GHB
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 10 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Country of Origin: Dominican Republic
✔ Dimensions: 1 in x 4 in x 4 in
✔ Weight: 0.7
✔ Panel Type: Eaton Powerline Panelboards
