Product Description:

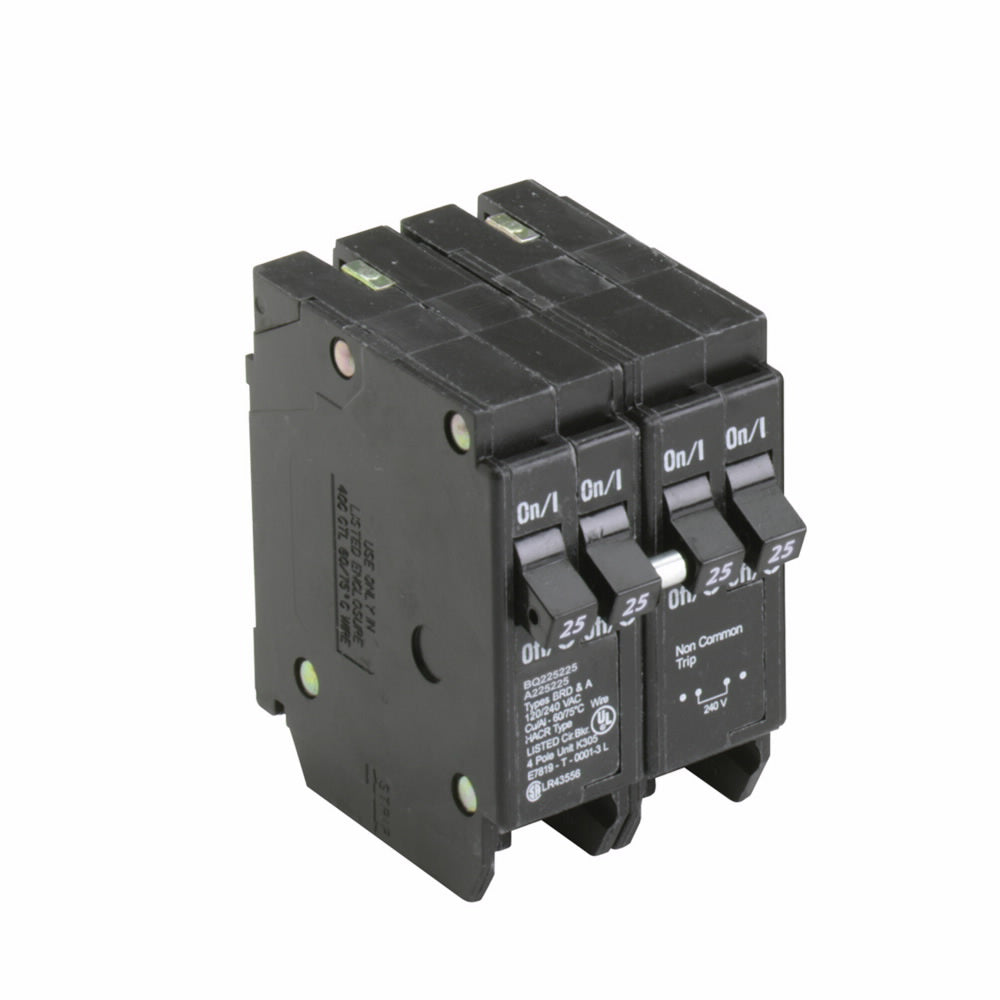

The Cutler Hammer BQ225225 is a 2-pole molded case circuit breaker from the BQ Series. It features a 240V, 25A rating with a 10kA@240V AIC rating and Feed-Thru connection. This breaker includes thermal magnetic protection for reliable performance. It is UL 489 and Federal Specifications W-C375 certified.
Key Features:
✔ Part Number: BQ225225
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 240V
✔ Amperage: 25A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Feed-Thru
✔ Protection: Thermal Magnetic
✔ Certification: UL 489, Federal Specifications W-C375
✔ UPC: 786676370950
✔ GTIN: 00786676370950
✔ Country of Origin: Dominican Republic
✔ Dimensions: 3in (L) x 3in (H) x 2in (W)
✔ Weight: 0.75 lbs
