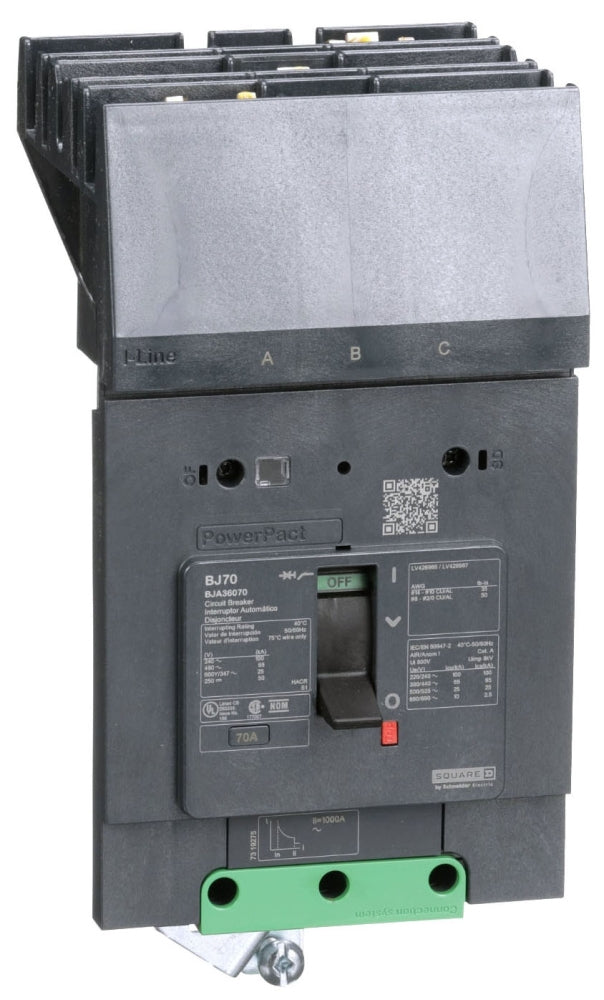

Schneider Electric BJA36070 Circuit Breaker | Powerpact BJA 600V 70A

Product Description:
The Schneider Electric BJA36070 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 70A rating and a 65kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and provides Thermal Magnetic protection. It is suitable for industrial control panels and electrical distribution equipment.

Key Features:
✔ Part Number: BJA36070
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BJA
✔ Voltage: 600V
✔ Amperage: 70A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BJ
✔ Wire Size: 14 AWG to 2 AWG
✔ Certification: CSA C22.2 No 5, EN/IEC 60947-2, EN/IEC 60947-5-1, GB 14048.2, NEMA AB1, NMX J-266, UL 489
✔
