Product Description:

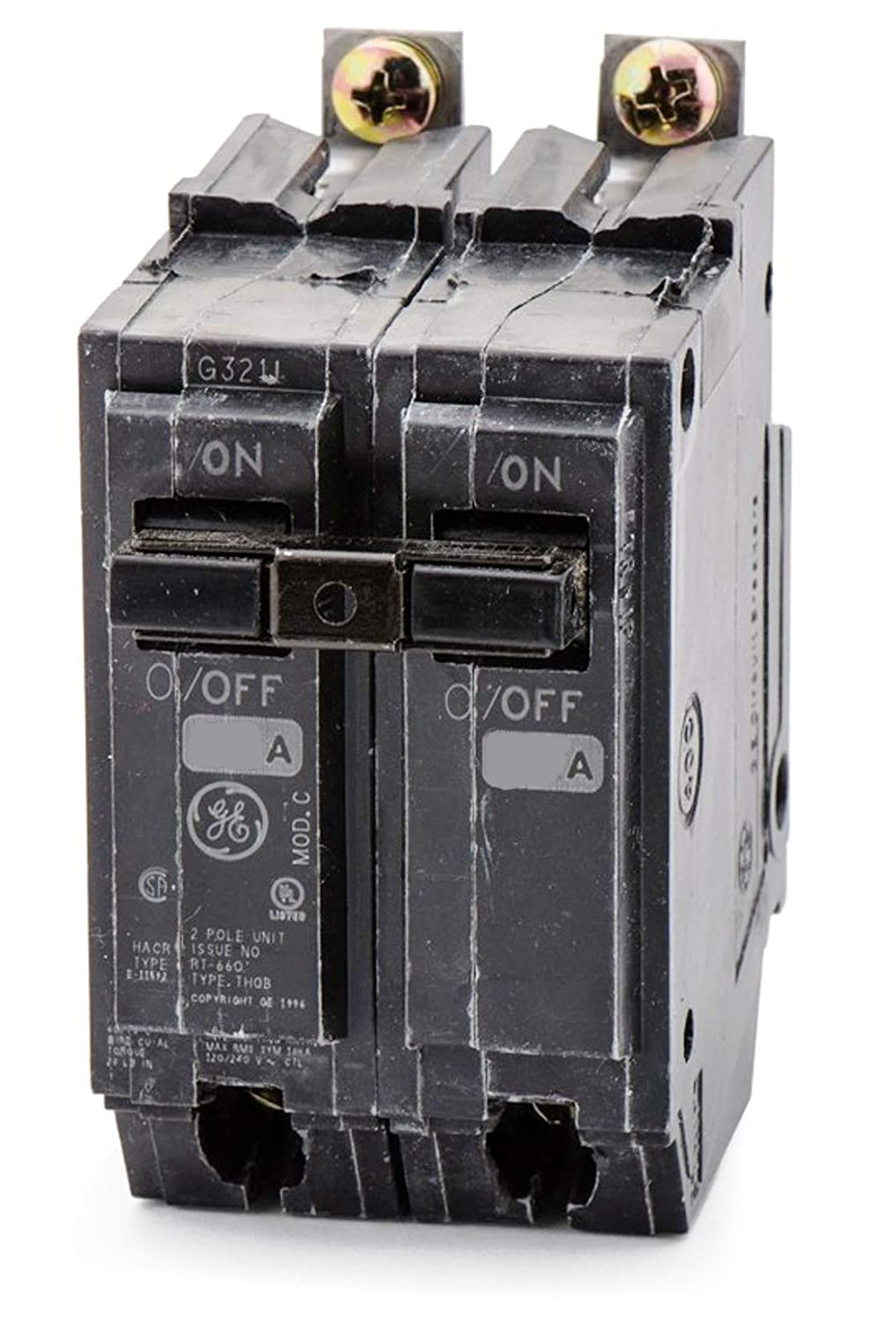

The General Electric THQB21100 is a Molded Case Circuit Breaker from the Q-Line family. It features a 2-pole design with a 240V, 100A rating and a 10kA@240V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: THQB21100
✔ Manufacturer: General Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Q-Line
✔ Type: THQB
✔ Voltage: 240V
✔ Amperage: 100A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Wire Size: 6 To 1/0 Awg (Copper), 4 To 1/0 Awg (Aluminum)
✔ UPC: 783164135749
✔ GTIN: 40783164135747
✔ Dimensions: 3.280 in x 2.375 in x 2.000 in
✔ Weight: 7.6 lb
✔ Certification: UL Listed
