Product Description:

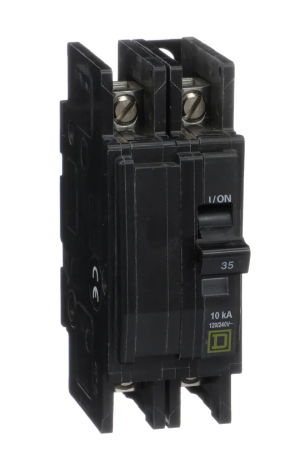

The Square D QOU235 is a reliable molded case circuit breaker designed for efficient electrical management. This 2-pole breaker operates at 120/240 VAC with a 35 amp rating and features a 10kA@240V AIC rating. It provides thermal magnetic protection and uses a unit mount connection for easy installation.
Key Features:
✔ Part Number: QOU235
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOU Series
✔ Type: QOU
✔ Voltage: 120/240 VAC
✔ Amperage: 35
✔ Certification: CSA, IEC, UL listed
✔ UPC: 785901489153
✔ GTIN: 00785901489153
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Unit Mount
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Slotted Box Lug (Reversible Line and Load)
✔ Frame Size: 100A/QOU
✔ MCM Size: Min. Wire Size 14 AWG Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Dimensions: 1.5 in x 4.05 in x 4.05 in
✔ Weight: 0.77
✔ Panel Type: Air Conditioning and Refrigeration Equipment, Heating
✔ Wire Size: AWG 14...AWG 2 aluminum/copper
