Product Description:

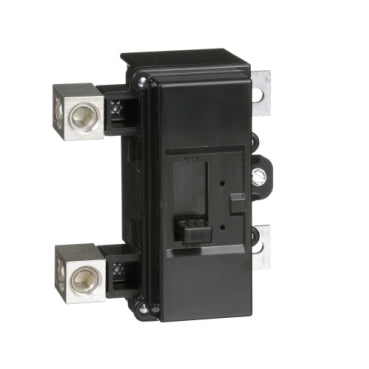

The Square D QOM2150VH is a robust Molded Case Circuit Breaker designed for reliable electrical protection. This 2-pole breaker operates at 120/240 VAC with a 150 amp rating and features a high AIC rating of 22kA@240V. It includes thermal magnetic protection and uses a bolt-on connection for secure installation.
Key Features:
✔ Part Number: QOM2150VH
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOM Series
✔ Type: QOM
✔ Voltage: 120/240 VAC
✔ Amperage: 150
✔ Certification: CSA, UL Listed
✔ UPC: 785901004059
✔ GTIN: 00785901004059
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 4 AWG Max. Wire Size 300 MCM
✔ Breaker Type: Main Breaker
✔ Protection: Thermal Magnetic
✔ Dimensions: 3.6 in x 5.6 in x 5.59 in
✔ Weight: 2.6
✔ Panel Type: Homeline Load Center, QO Load Center
✔ Wire Size: 4 Awg To 300 Kcmil (Aluminum/Copper)
