Product Description:

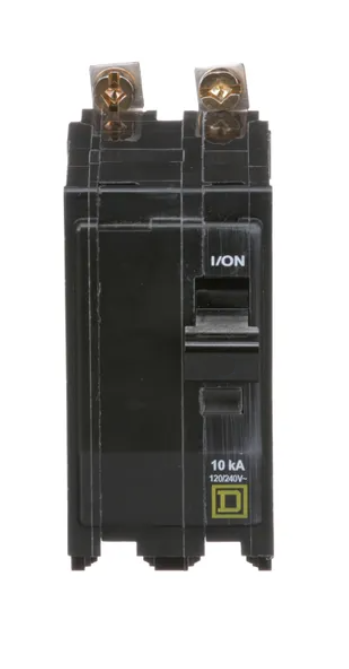

The Square D QOB250 is a Molded Case Circuit Breaker from the QOB Series. It features a 2-pole design with a 120/240 VAC voltage rating and 50 amp capacity. This breaker includes thermal magnetic protection and has a 10kA@120V AIC rating. It uses a bolt-on connection and is compatible with Square D NQOD panelboards.
Key Features:
✔ Part Number: QOB250
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120/240 VAC
✔ Amperage: 50
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/QO
✔ MCM Size: Min. Wire Size 8 AWG, Max. Wire Size 2 AWG
✔ Breaker Type: Standard
✔ Temp Rating: 104 Degrees F (Min/Max)
✔ Wire Size: 8 To 2 AWG (Aluminum/
