Product Description:

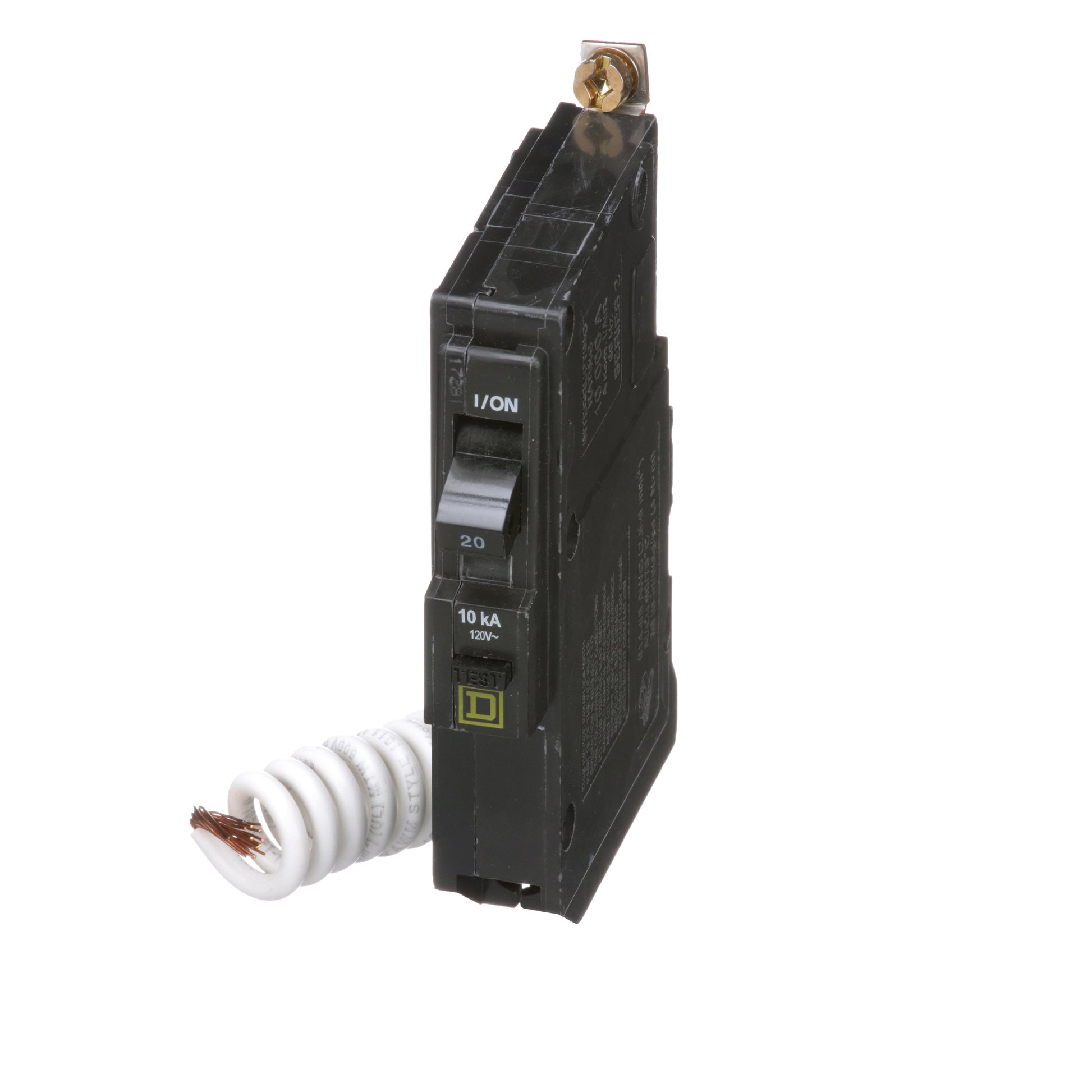

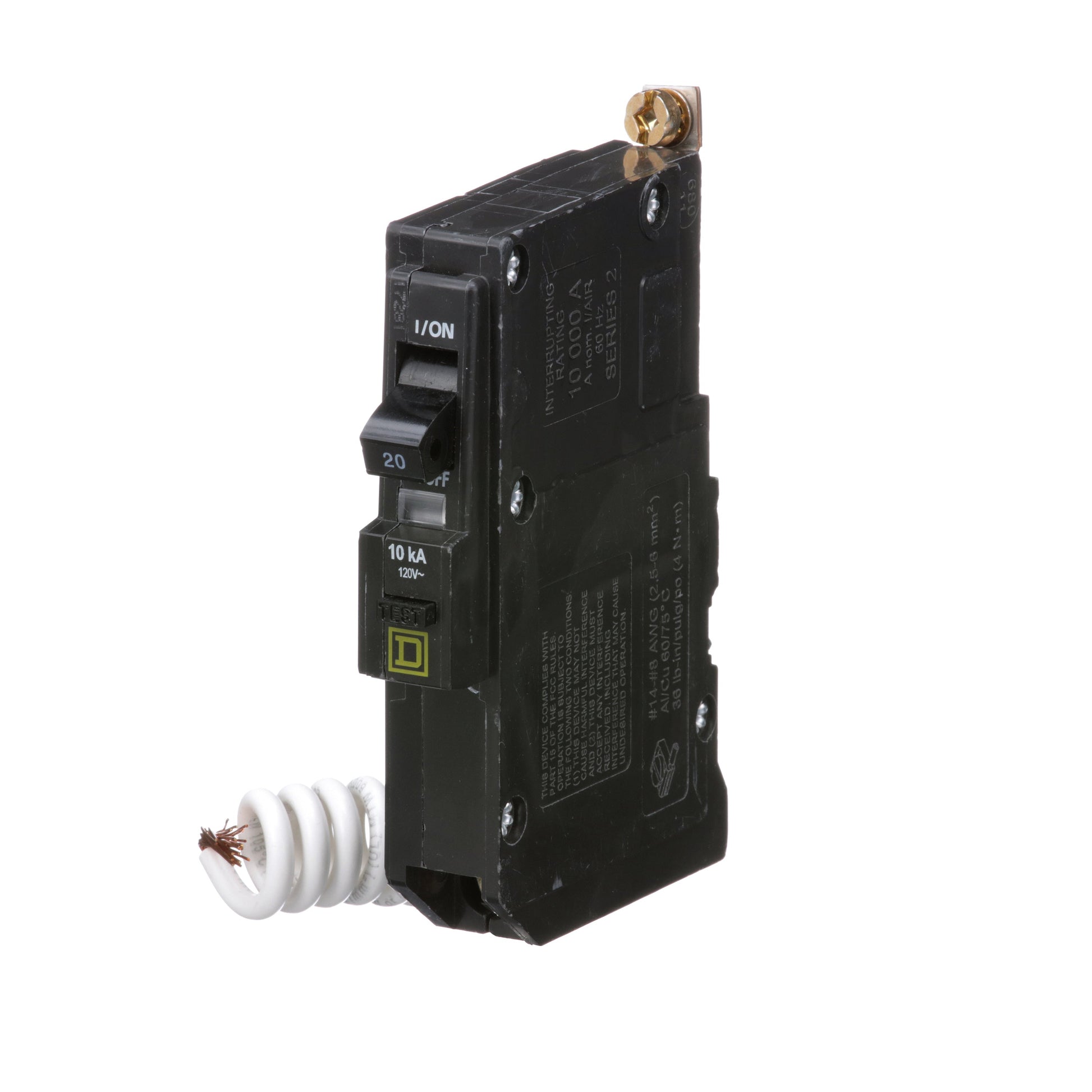

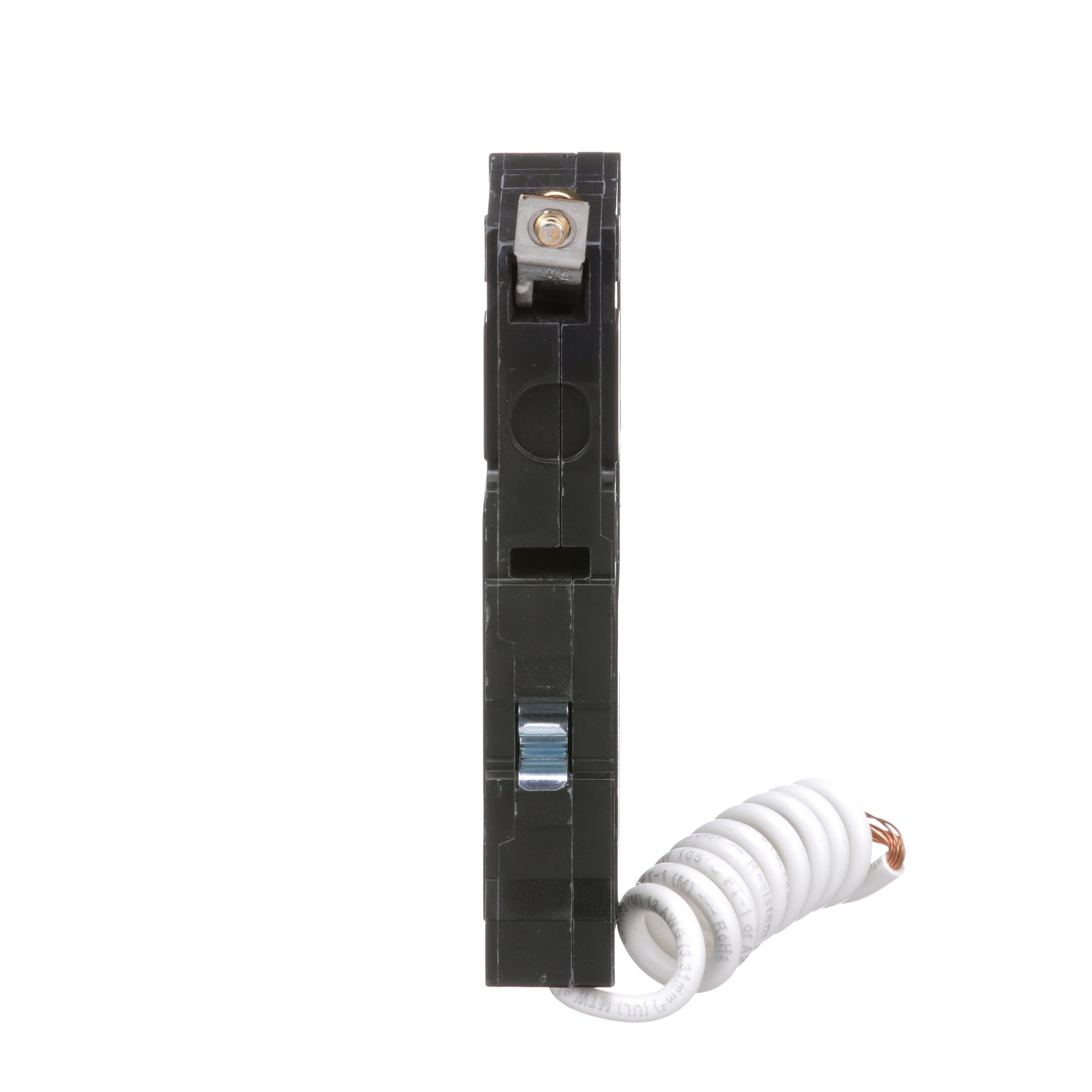

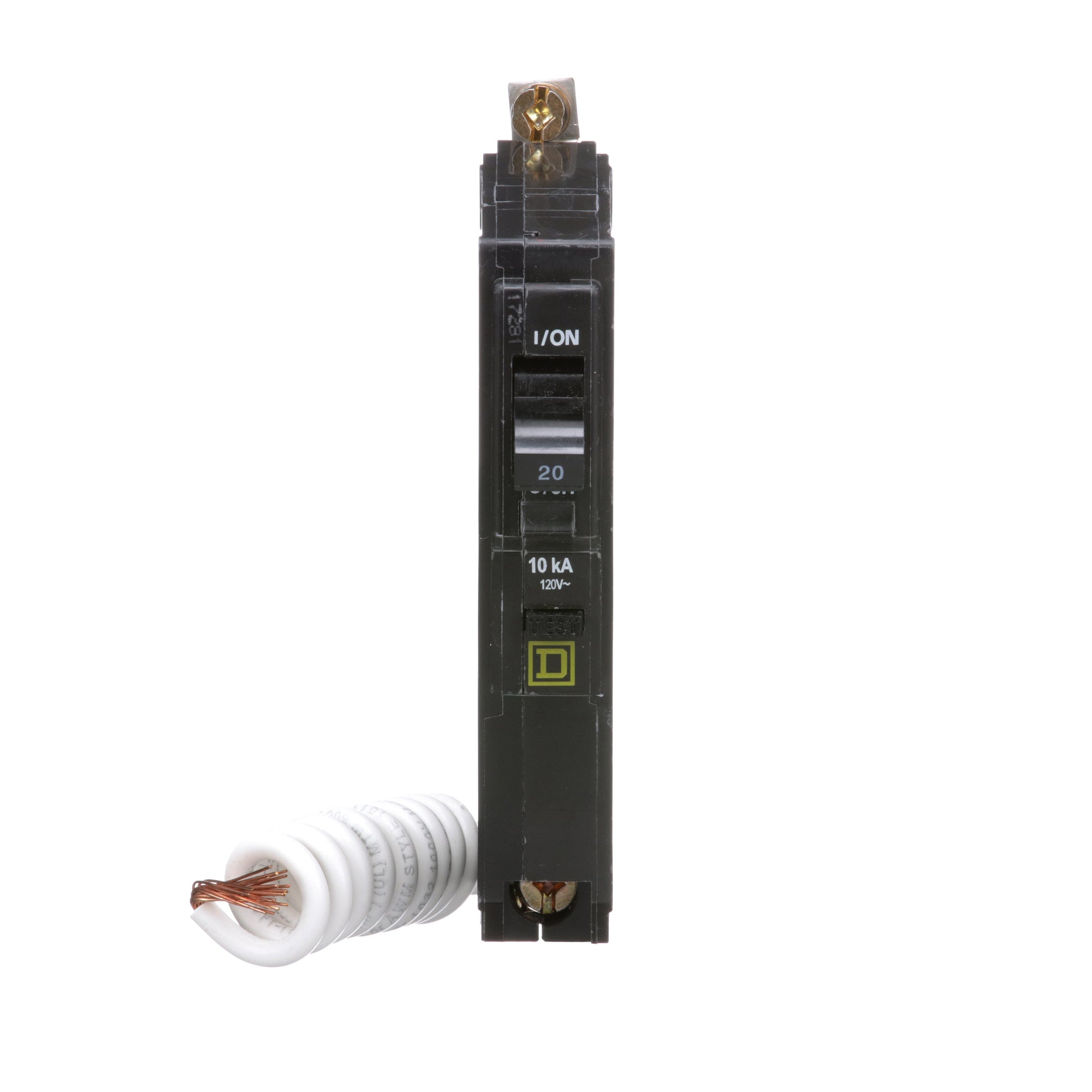

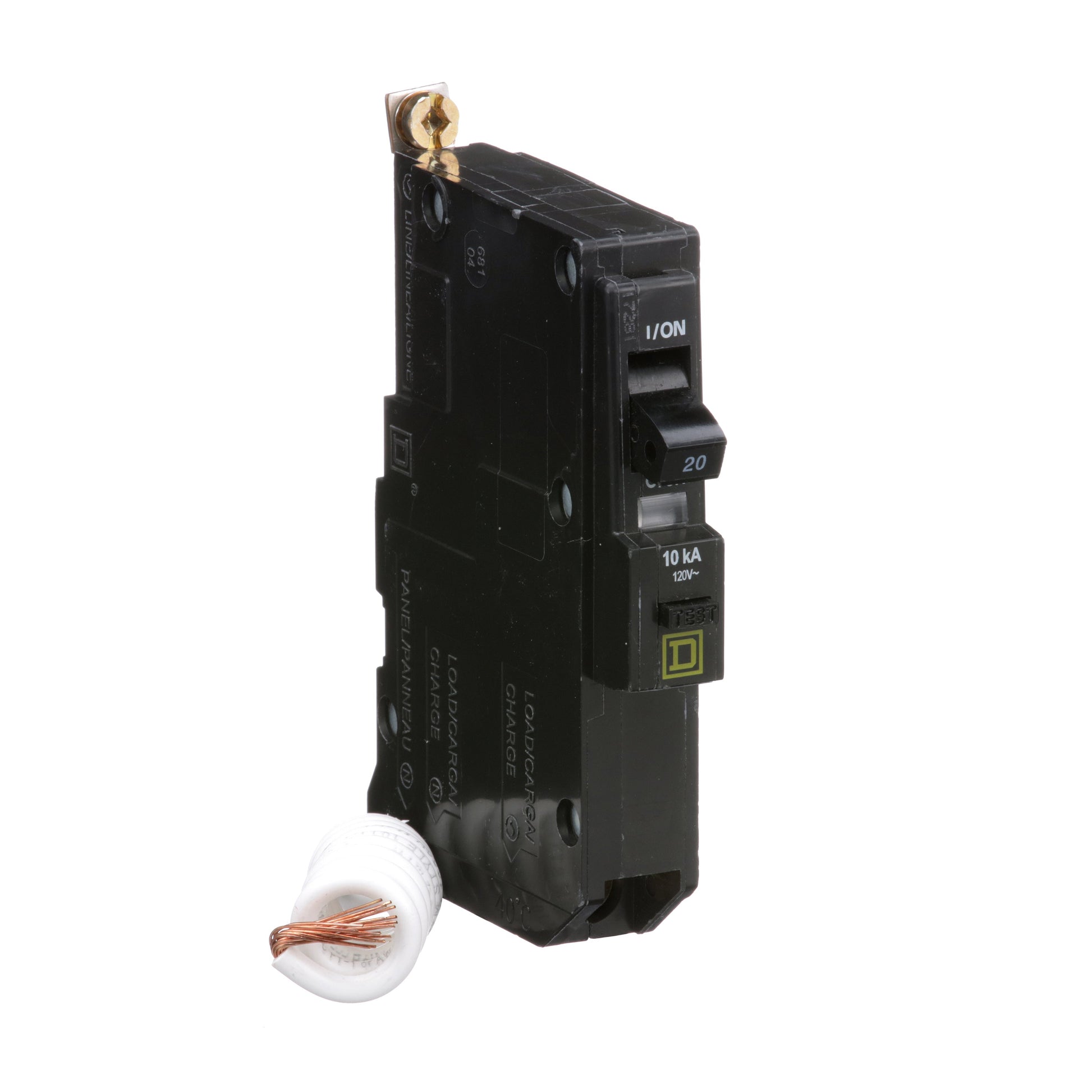

The Square D QOB120EPD is a 1-pole molded case circuit breaker with a 120VAC voltage rating and 20A amperage. It features a bolt-on connection and thermal magnetic protection, with an AIC rating of 10kA@120V. Designed for QO load centers and NQ panelboards, it supports wire sizes from 12 to 8 AWG (aluminum) and 14 to 8 AWG (copper).
Key Features:
✔ Part Number: QOB120EPD
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: QOB Series
✔ Type: QOB
✔ Voltage: 120VAC
✔ Amperage: 20A
✔ Phase: 1
✔ Poles: 1
✔ AIC Rating: 10kA@120V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Pressure Plate
✔ Frame Size: 100A/QO
✔ Wire Size: 12 to 8 AWG (Al), 14 to 8 AWG (Cu)
✔ Breaker Type: Ground Fault Equipment Protection
✔ Temp Rating: Min
