Product Description:

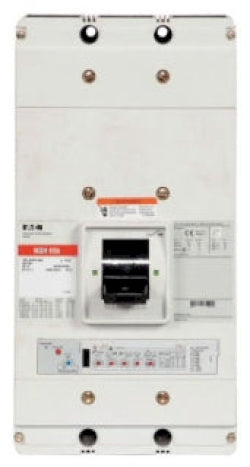

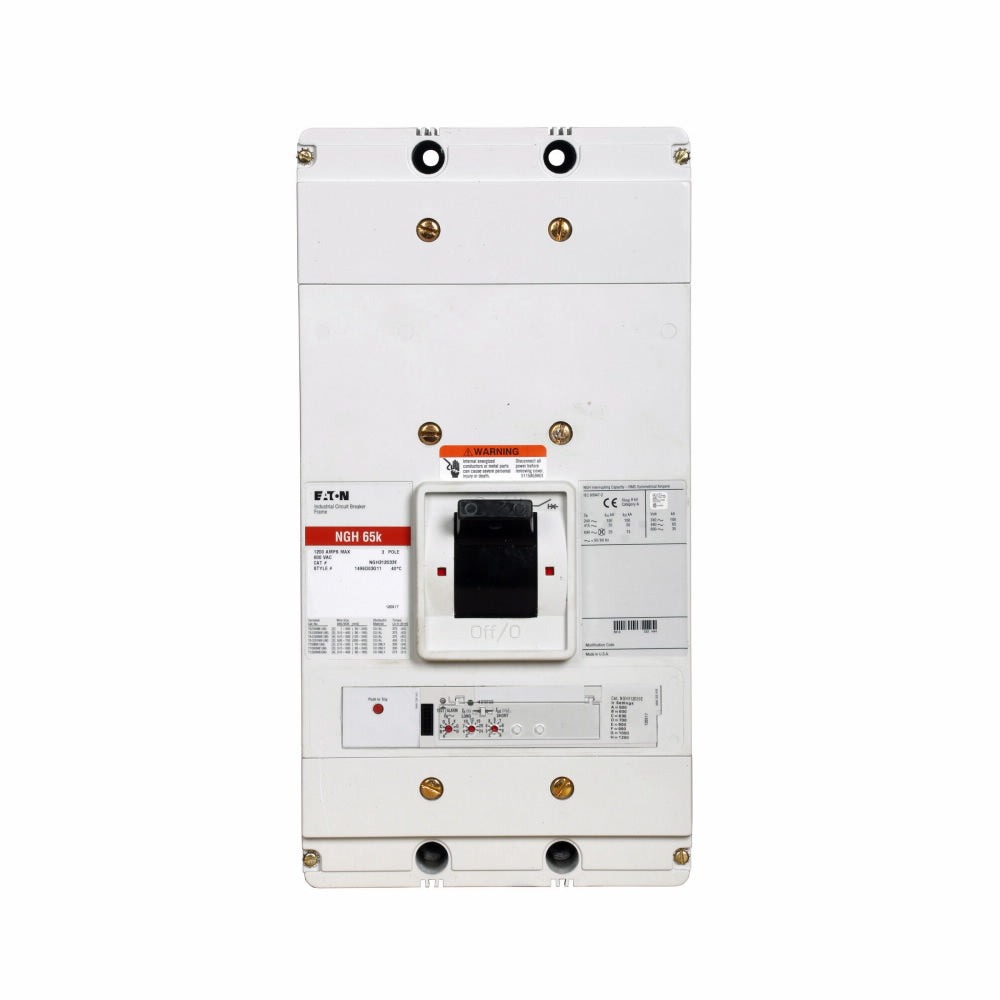

The Cutler Hammer NGH312033E is a Molded Case Circuit Breaker from the Series G family. It features a 3-pole design with a 600V, 1200A rating and a 65kA@480V AIC rating. This breaker uses a Bolt-On connection and includes solid-state protection for reliable performance. It is compatible with various panel types and meets CSA, IEC, and UL standards.
Key Features:
✔ Part Number: NGH312033E
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series G
✔ Type: NGH
✔ Voltage: 600V
✔ Amperage: 1200A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Bolt-On
✔ Functions: LS - Long-Time and Short-Time
✔ Terminal Connection: Line/Load Lug
✔ Frame Size: 1200A/N
✔ MCM Size: Min. 4 AWG, Max. 500 MCM
✔ Breaker Type: LS Functionality
✔ Temp Rating: -4°F to 158°F
✔ Certification: CSA Certified, IEC
