Product Description:

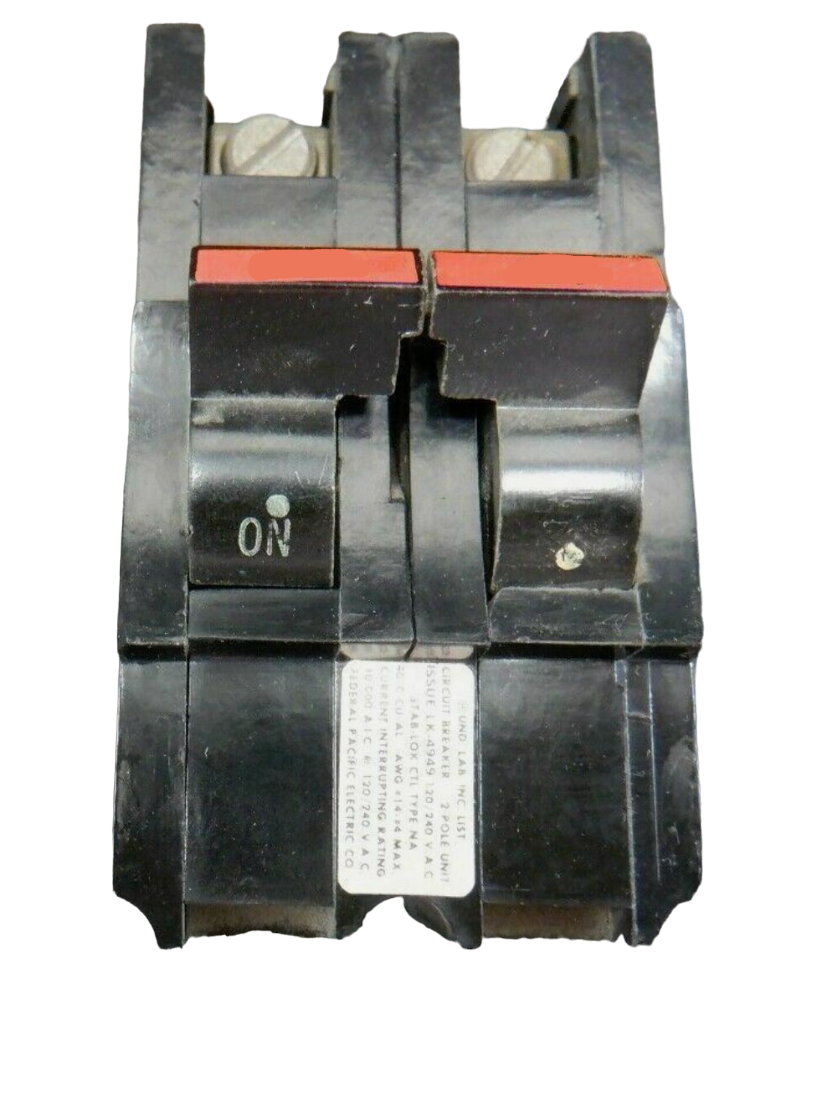

The Federal Pioneer NA270 is a Molded Case Circuit Breaker from the Stab-Lok family. It is a 2-pole, 240V, 70A breaker with a 10kA@240V AIC rating. This breaker features Plug-In connectivity and Thermal Magnetic protection for reliable performance. Designed for use with AWG 14 to AWG 2 copper wiring, it is CSA certified for safety.
Key Features:
✔ Part Number: NA270
✔ Manufacturer: American
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Stab-Lok
✔ Type: NA
✔ Voltage: 240V
✔ Amperage: 70A
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Protection: Thermal Magnetic
✔ Dimensions: 3.09 in (78.49 mm) x 4.44 in (112.78 mm)
✔ Weight: 10.4 oz
✔ Certification: CSA
✔ Wire Size: AWG 14...AWG 2 copper
