Product Description:

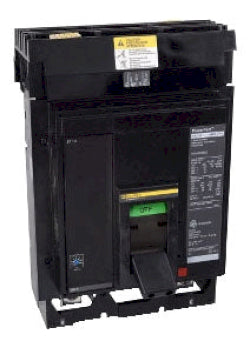

The Square D MJA36600 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 600A rating and a 65kA@480V AIC rating. This breaker includes solid-state protection and uses a panel mount connection. It is suitable for I Line Panelboards and complies with CSA, IEC, and UL standards.
Key Features:
✔ Part Number: MJA36600
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: MJA
✔ Voltage: 600V
✔ Amperage: 600A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 65kA@480V
✔ Connection: Panel Mount
✔ Protection: Solid State
✔ Terminal Connection: Box Lug
✔ Frame Size: 800A/M
✔ Wire Size: 3/0 AWG to 500 MCM
✔ Certification: CSA, IEC, UL Listed
✔ UPC: 785901504757
✔ GTIN: 00785901504757
✔ Country of Origin: United States
