Product Description:

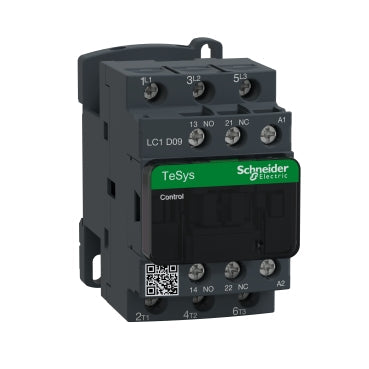

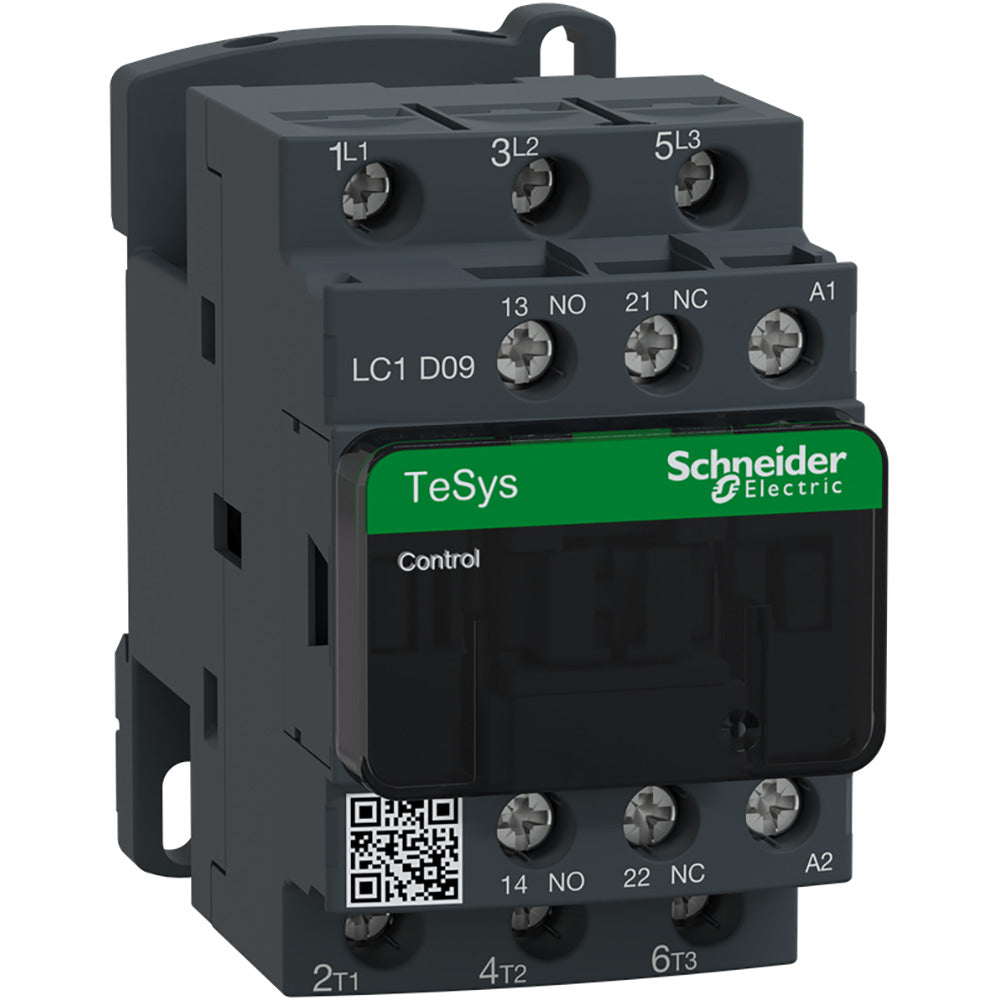

The Square D LC1D09G7 Contactor is designed for motor control applications. It supports various horsepower ratings, including 1 hp at 230/240V AC for single-phase motors and up to 7.5 hp at 575/600V AC for three-phase motors. The contactor features 1NO/1NC auxiliary contacts and is suitable for both inductive and resistive loads. It is certified by multiple standards, including UL, CSA, and IEC.
Key Features:
✔ Part Number: LC1D09G7
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Horsepower: 1 hp (230/240V AC, 1-phase), 2 hp (200/208V AC, 3-phase), 5 hp (460/480V AC, 3-phase), 7.5 hp (575/600V AC, 3-phase), 0.33 hp (115V AC, 1-phase)
✔ Aux Contacts: 1NO/1NC
✔ Full Load Amps: 9A (Inductive), 20A (Resistive)
✔ Mounting: Rail/Plate
✔ Certification: BV, CCC, CSA, DNV, EN, GL, GOST, IEC, LROS, RINA, UKCA, UL
