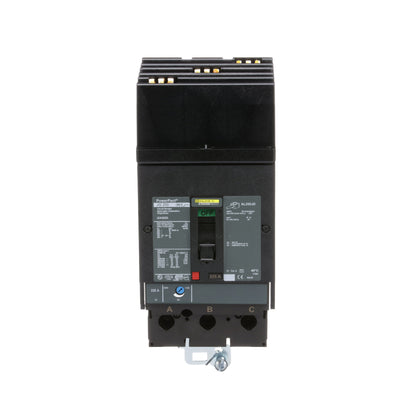

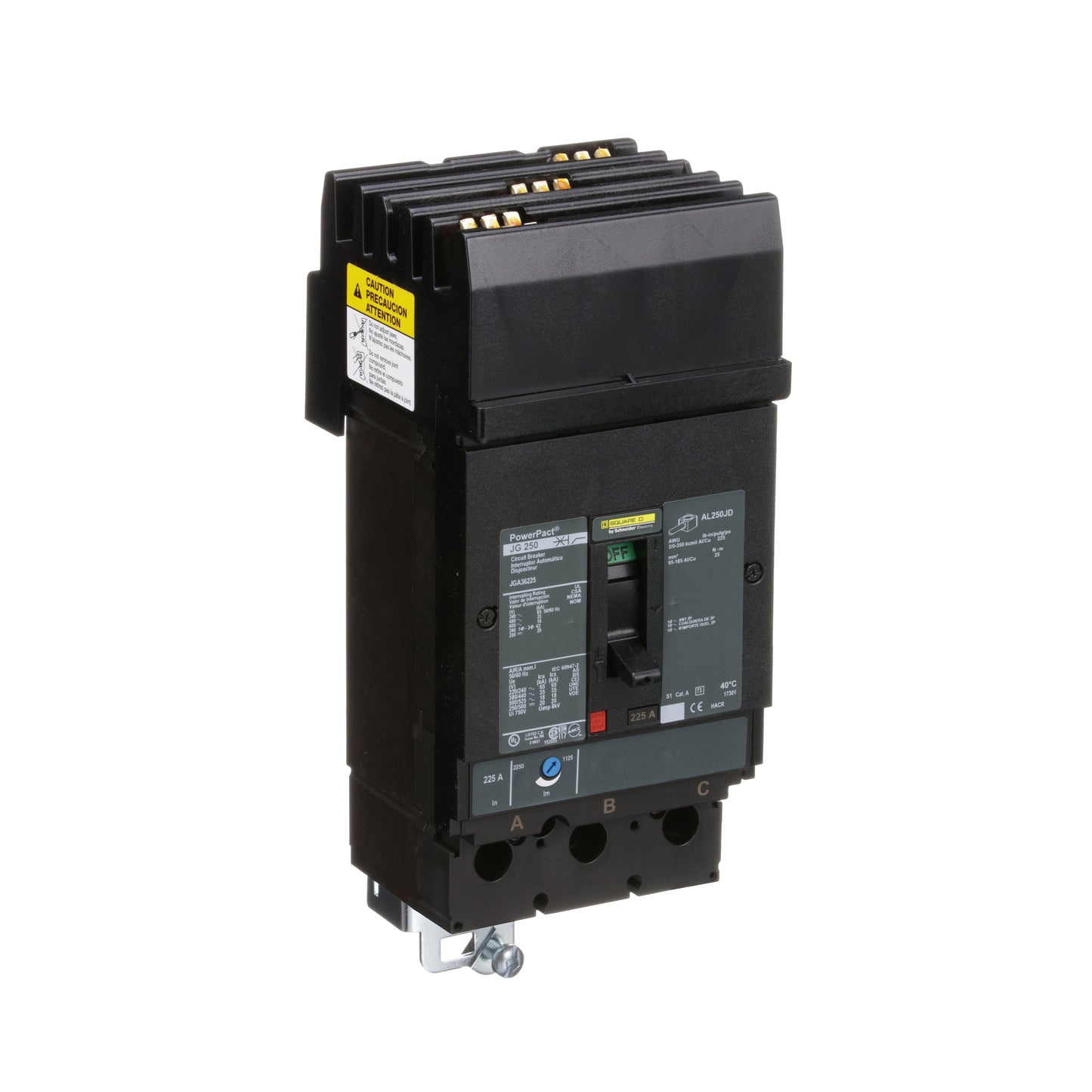

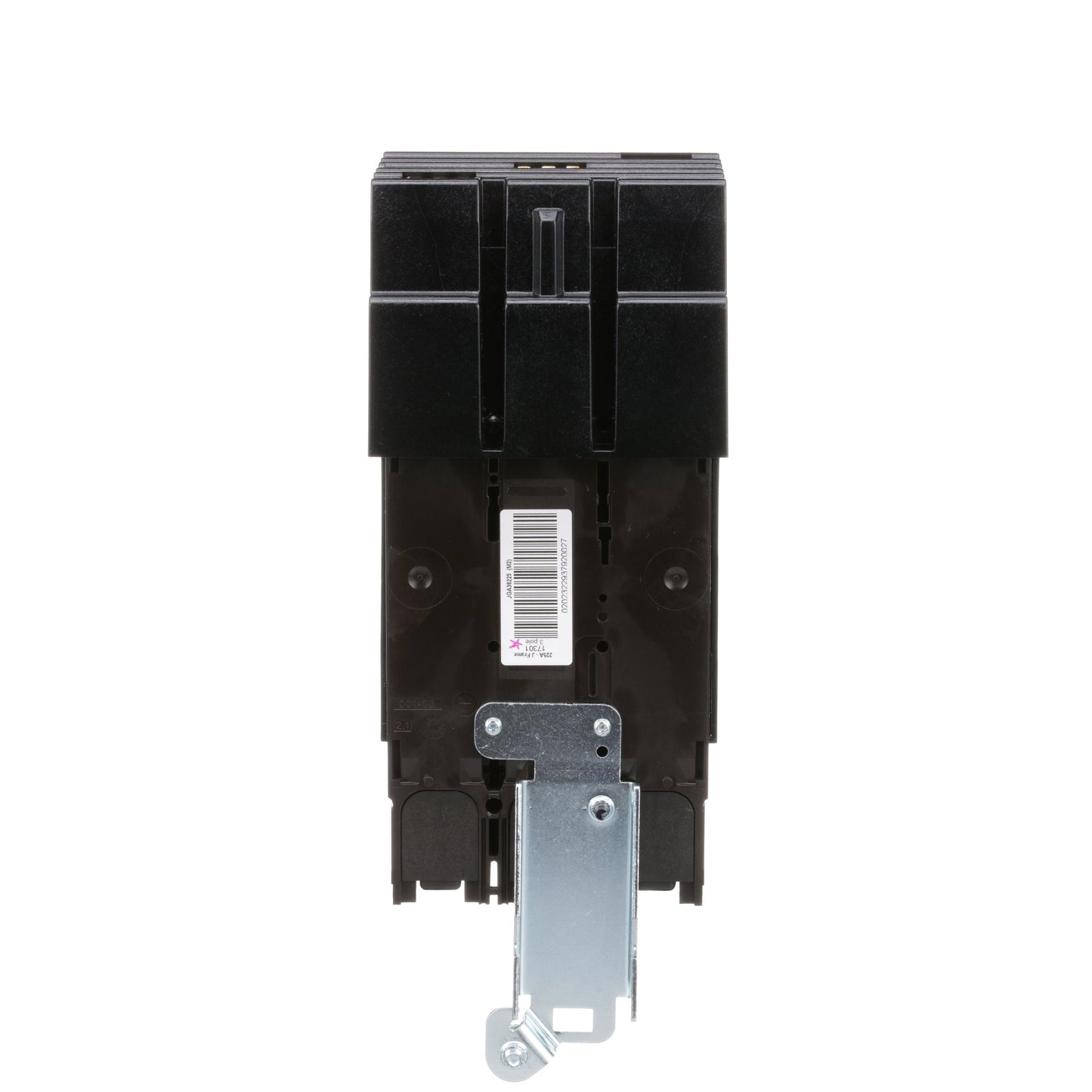

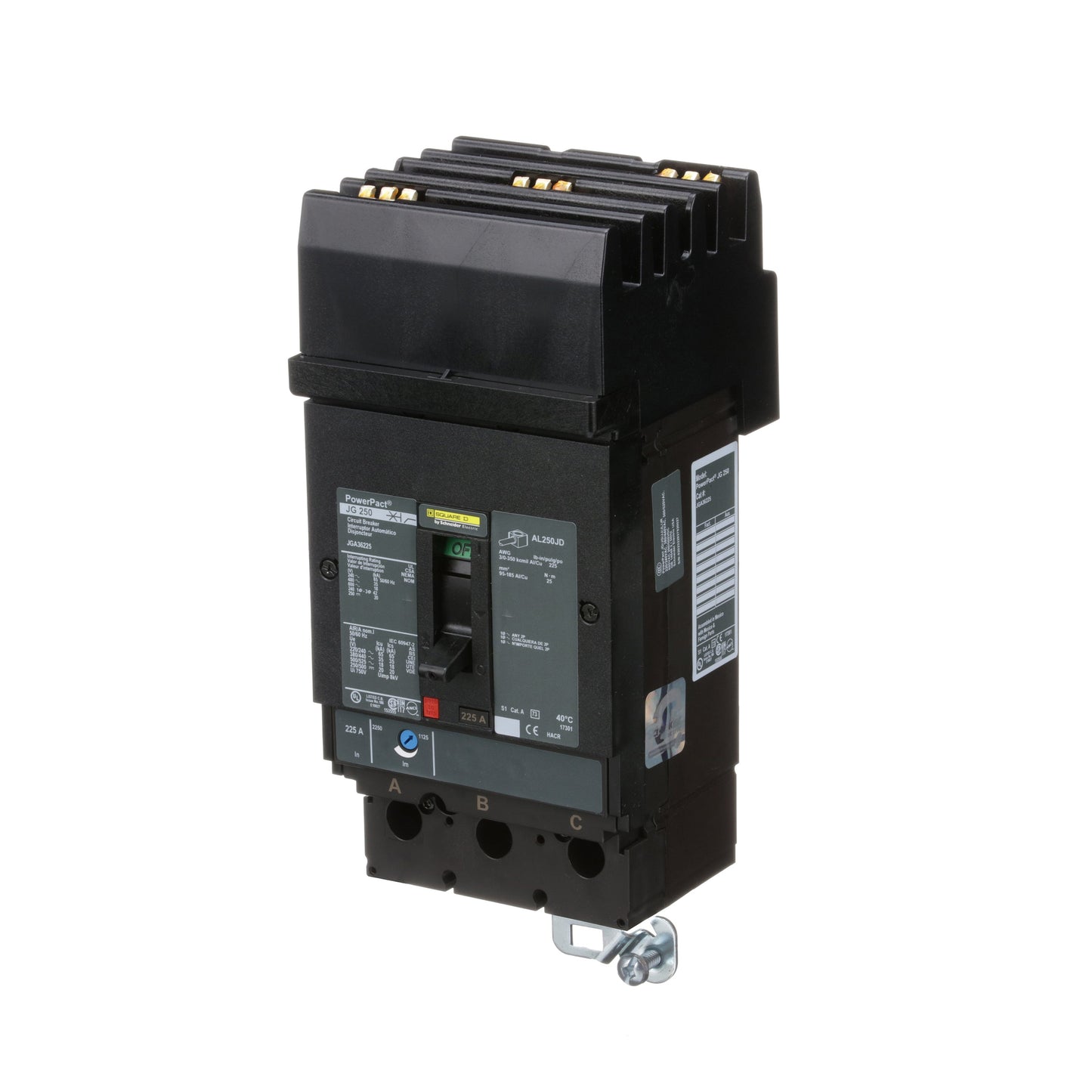

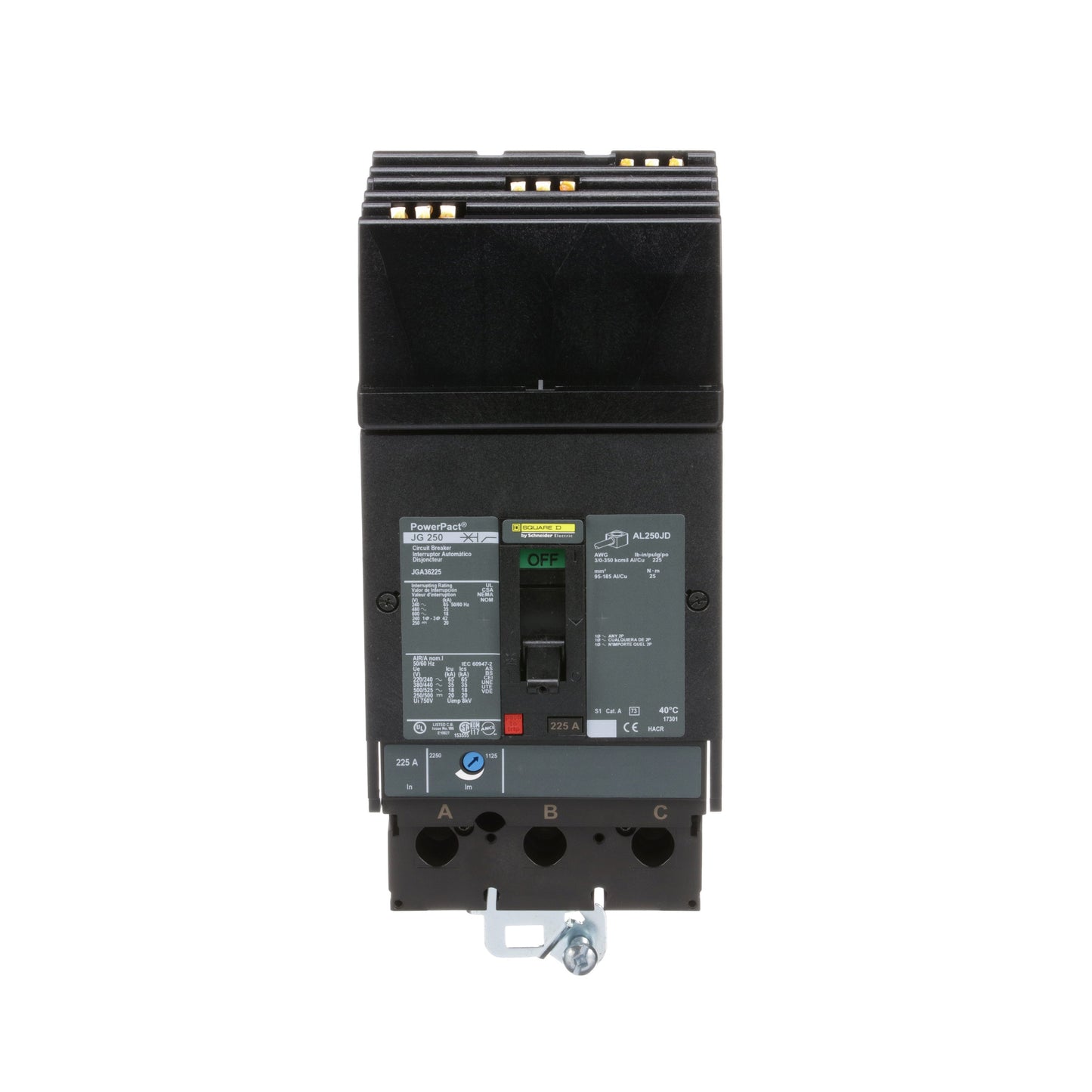

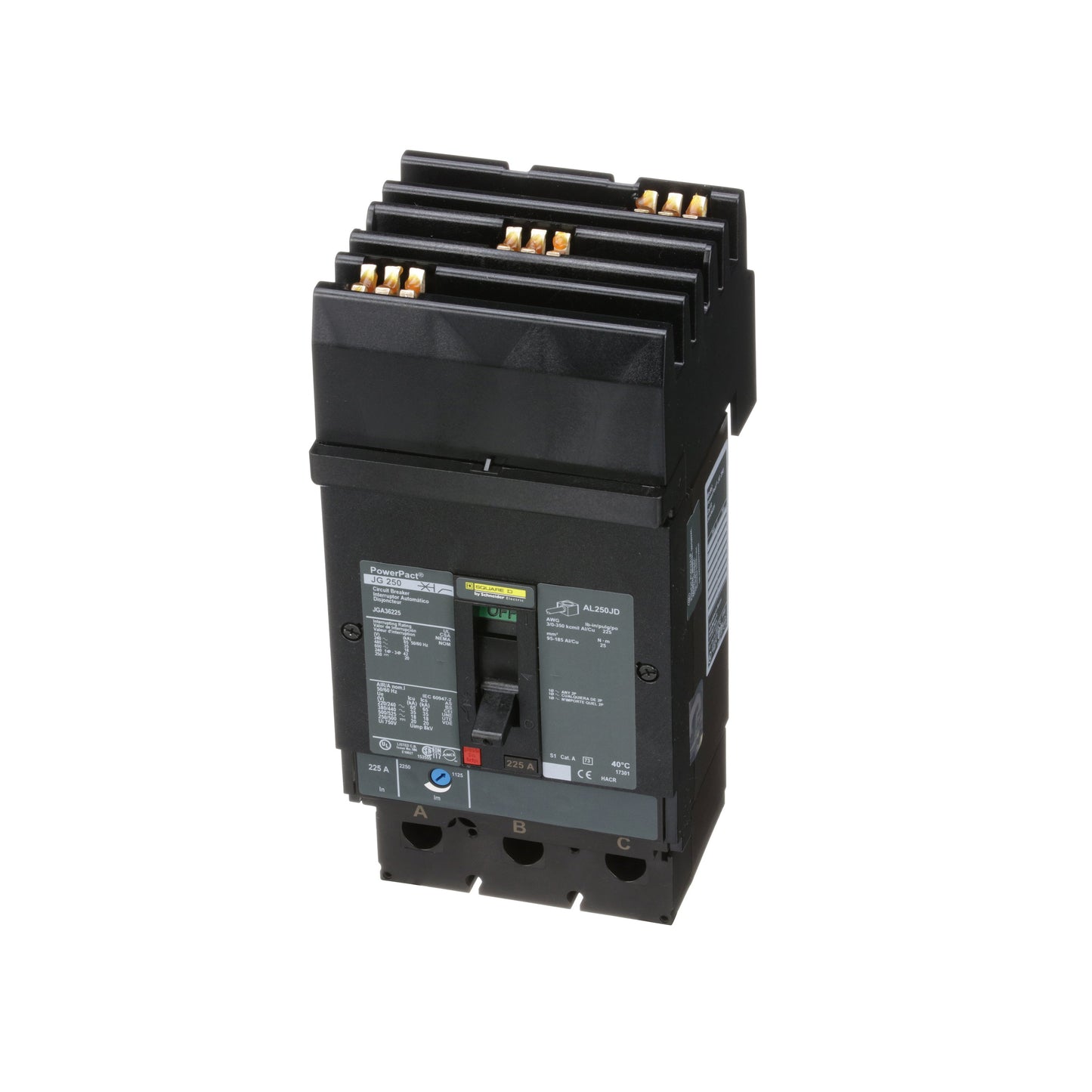

Square D JGA36225 Circuit Breaker | Powerpact JGA 600V 225A

Product Description:
The Square D JGA36225 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 225A rating and a 35kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes Thermal Magnetic protection. It is compatible with I-Line Panelboards and supports wire sizes from 3 AWG to 350 MCM.

Key Features:
✔ Part Number: JGA36225
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: JGA
✔ Voltage: 600V
✔ Amperage: 225A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Thermal Magnetic
✔ Frame Size: 250A/JG
✔ Wire Size: 3 AWG to 350 MCM
✔ Terminal Connection: Line/Load Lug
✔ Standards: CCC, CE, CSA, IEC, UL Listed
✔ Certification: CCC, CE, CSA, IEC, UL Listed
✔ UPC:
