Product Description:

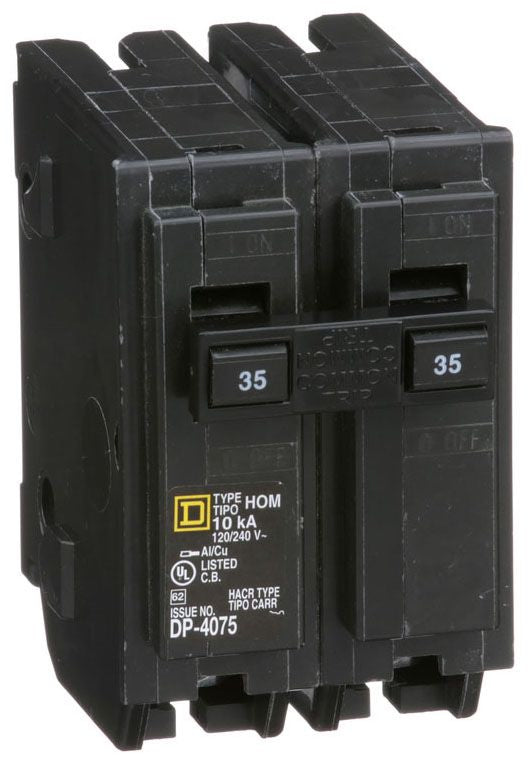

The Square D HOM235 is a Molded Case Circuit Breaker from the HOMELINE family. It is a 2-pole, 35-amp breaker with a voltage rating of 120/240 VAC and an AIC rating of 10kA@240V. This Plug-In breaker features Thermal Magnetic protection and is compatible with Homeline Load Centers. It is CSA Certified, HACR, and UL Listed for safety compliance.
Key Features:
✔ Part Number: HOM235
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: HOMELINE
✔ Type: HOM
✔ Voltage: 120/240 VAC
✔ Amperage: 35
✔ Phase: 1
✔ Poles: 2
✔ AIC Rating: 10kA@240V
✔ Connection: Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 100A/HOM
✔ Min. Wire Size: 8 AWG
✔ Max. Wire Size: 2 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Certification: CSA Certified, HACR, UL
