Square D HDA36080 Circuit Breaker | Powerpact HDA 600V 80A

Product Description:

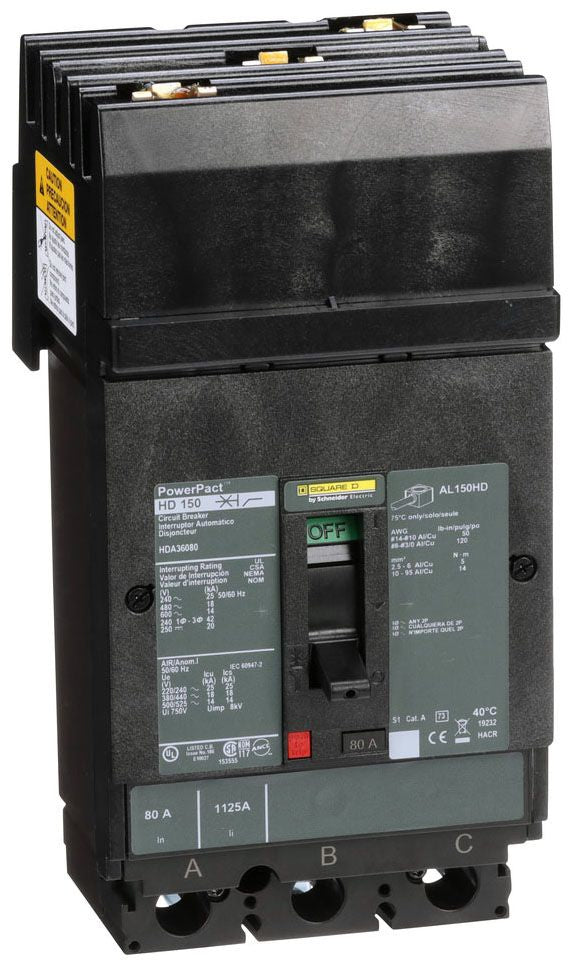

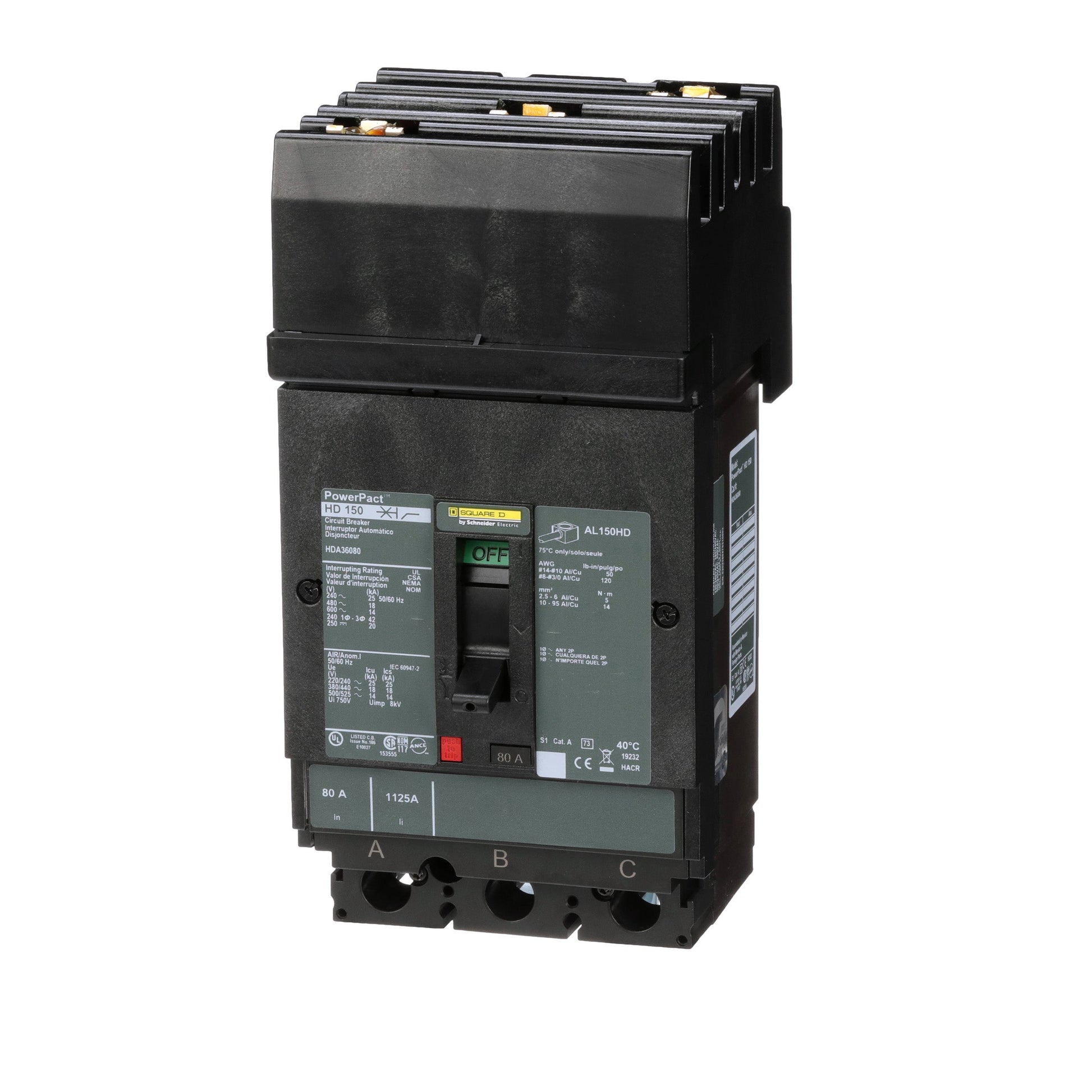

The Square D HDA36080 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 80A rating and an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes Thermal Magnetic protection.

Key Features:
✔ Part Number: HDA36080
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600V
✔ Amperage: 80A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Protection: Thermal Magnetic
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ Wire Size: 14 AWG (Min), 3/0 AWG (Max)
✔ Certification: UL, CSA, NEMA, NOM, CE
✔ UPC: 785901507277
✔ GTIN: 00785901507277
✔ Country of Origin: Mexico
