Square D HDA36070 Circuit Breaker | Powerpact HDA 600V 70A

Product Description:

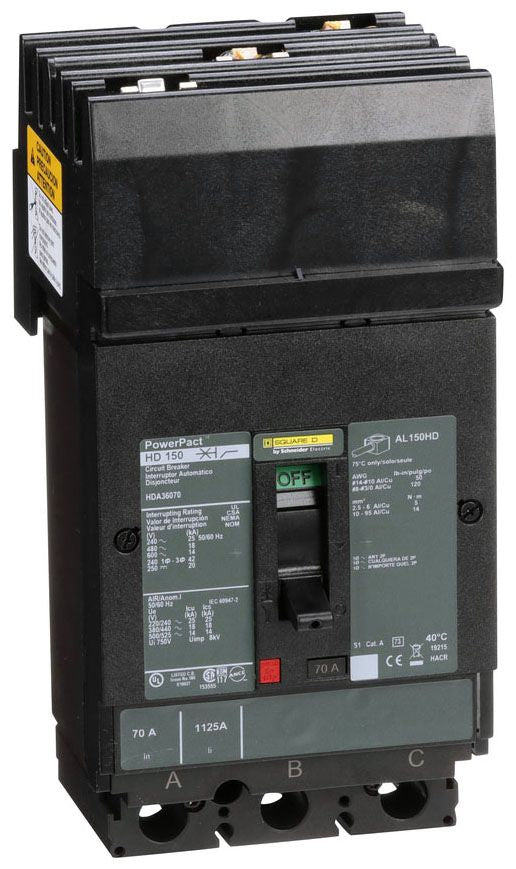

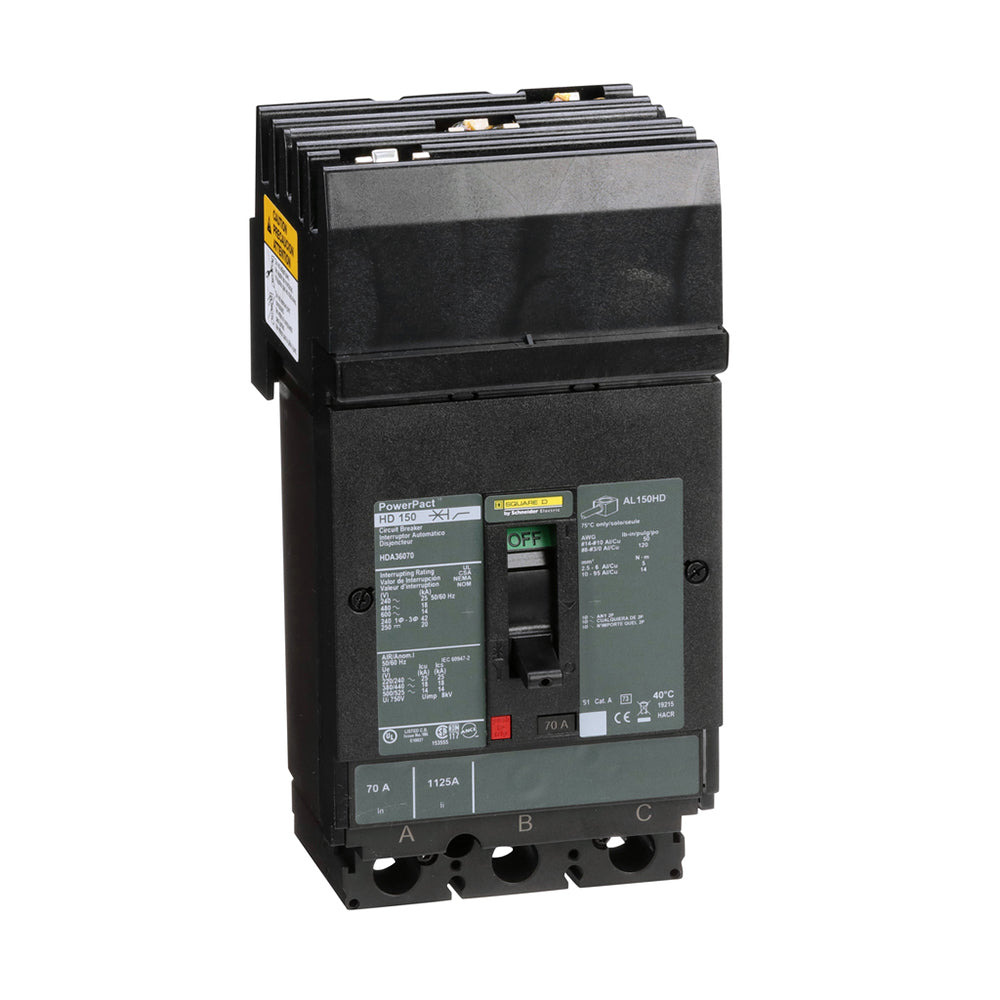

The Square D HDA36070 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 70A rating and an 18kA@480V AIC rating. This breaker uses an I-Line Style Plug-In connection and includes Thermal Magnetic protection.

Key Features:
✔ Part Number: HDA36070
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: HDA
✔ Voltage: 600V
✔ Amperage: 70A
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 18kA@480V
✔ Connection: I-Line Style Plug-In
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: I-Line, Lug
✔ Frame Size: H
✔ MCM Size: Min. Wire Size 14 AWG (Cu/Al), Max. Wire Size 3/0 AWG (Cu/Al)
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 785901419976
✔ GTIN: 00785901419976
✔ Country
