Product Description:

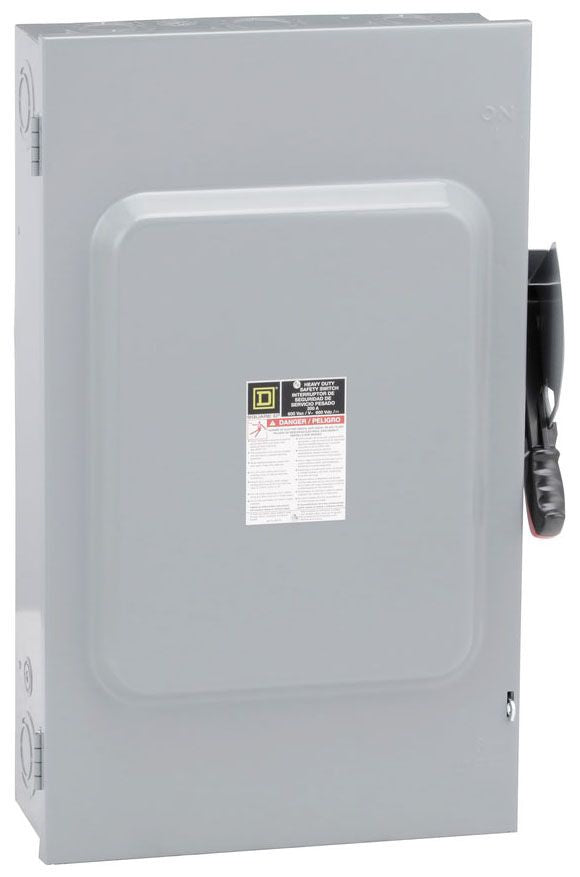

The Square D H364N is a 3-phase, 3-pole disconnect switch rated for 600V and 200A. It features a NEMA 1 enclosure and a 200kA@600V AIC rating. Compatible with class R, J, H, and K fuses, it includes a neutral and is suitable for service entrance applications. The switch has a fusible design and is UL listed.
Key Features:
✔ Part Number: H364N
✔ Manufacturer: Square D
✔ Category: Switch
✔ Subcategory: Disconnect
✔ Family: Series F
✔ Type: H
✔ Voltage: 600V
✔ Amperage: 200A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 200kA@600V
✔ Fuse Class: R, J, H, K
✔ Configuration: Single Switch
✔ Style: Fusible
✔ NEMA Rating: 1
✔ Compatible Frames: MD
✔ UPC: 785901482338
✔ GTIN: 00785901482338
✔ Depth: 8.25 in (209.55 mm)
✔ Width: 18.5 in (469.90 mm)
