Product Description:

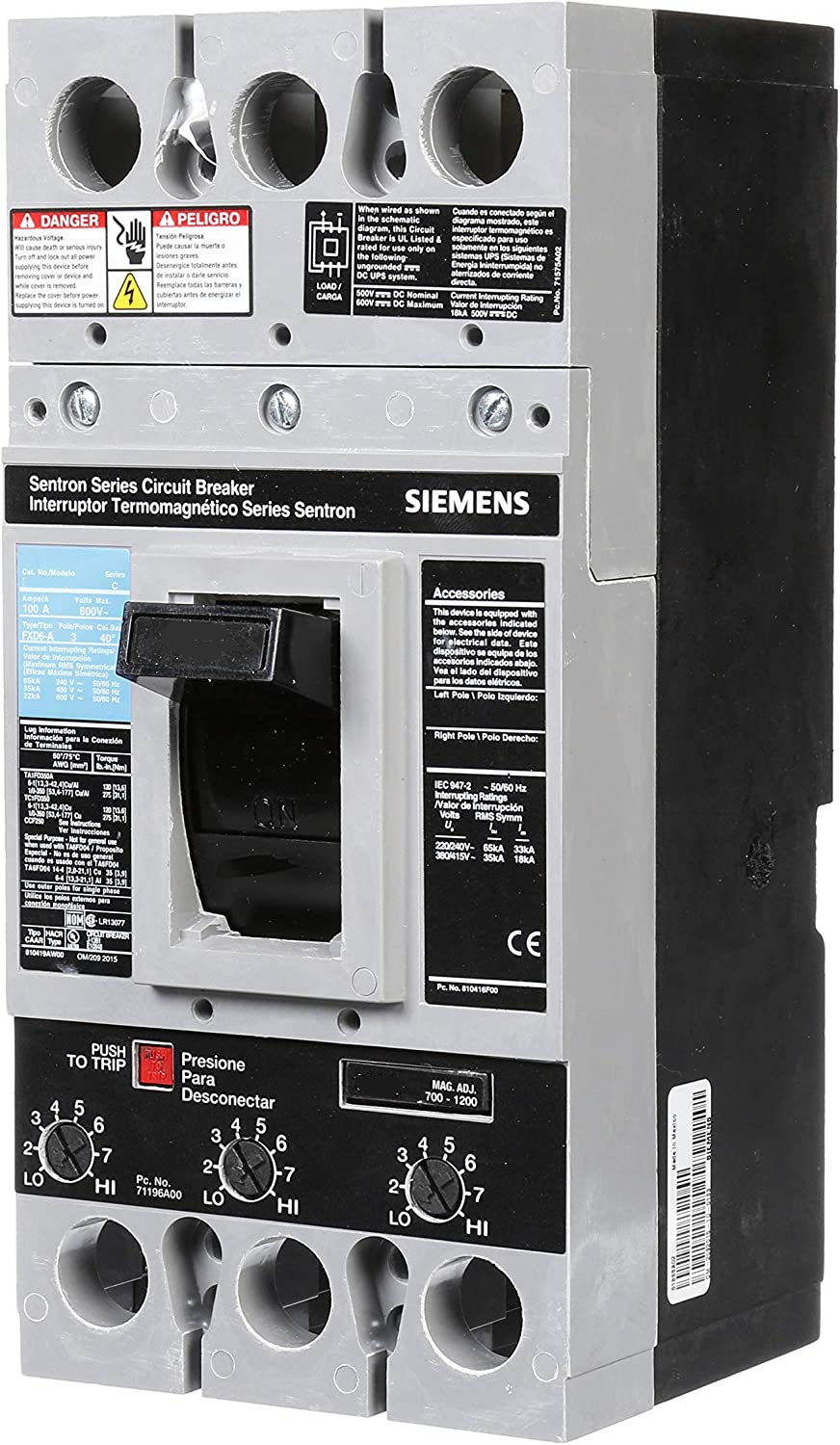

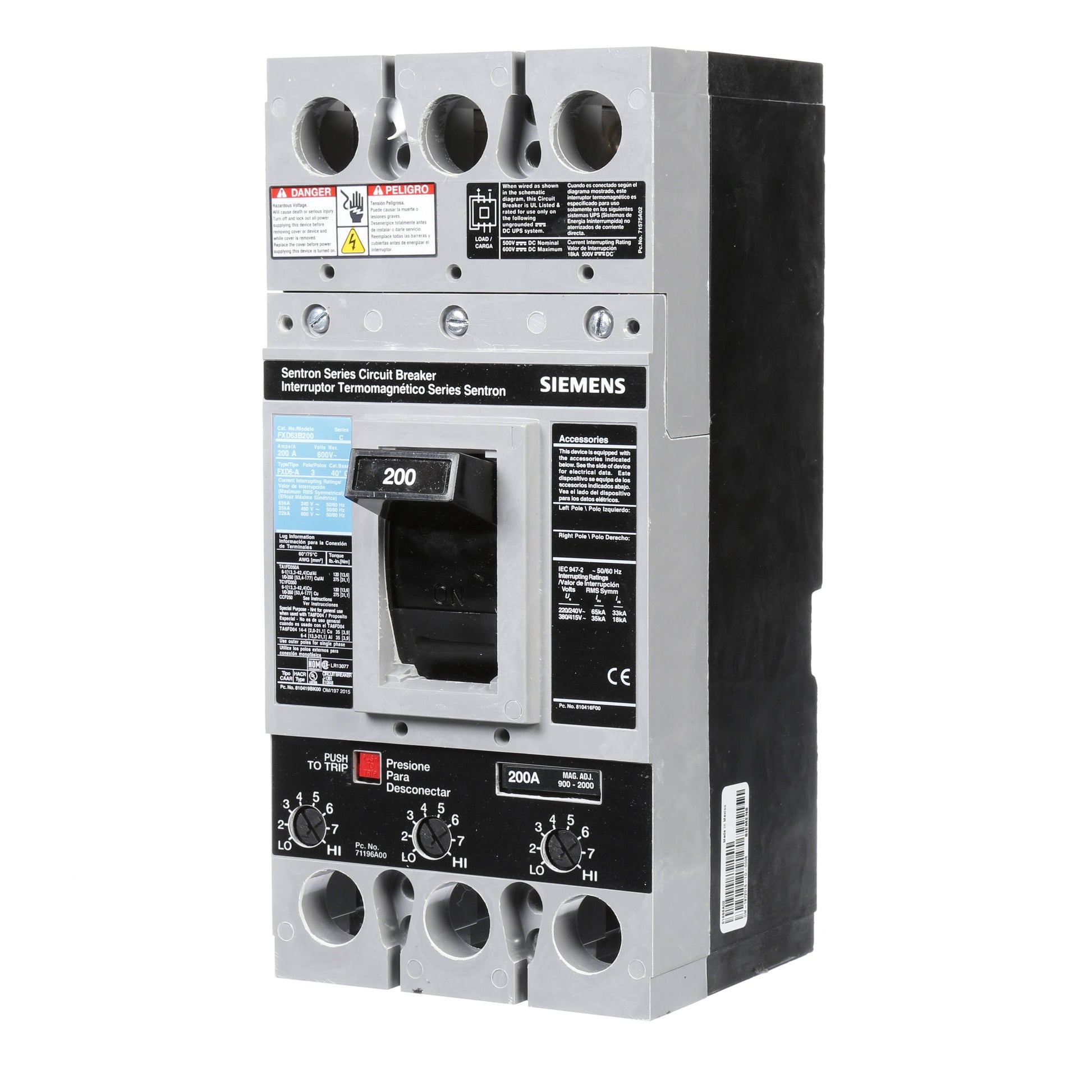

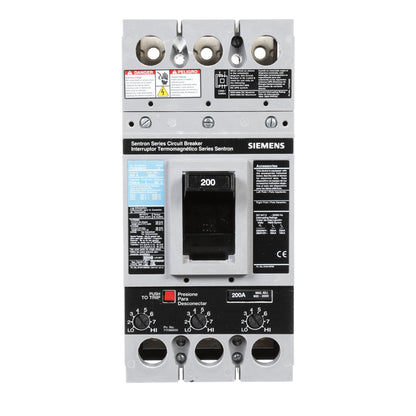

The Siemens FXD63B200 is a Molded Case Circuit Breaker from the Sentron Series. It features a 3-pole design with a 600V, 200A rating and a 35kA@480V AIC rating. This breaker uses a bolt-on connection and includes thermal magnetic protection. Lugs are sold separately.
Key Features:
✔ Part Number: FXD63B200
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: FXD
✔ Voltage: 600V
✔ Amperage: 200A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ Terminal Connection: Lug
✔ Frame Size: 250A/FD
✔ Breaker Type: Standard
✔ Phase Connection: ABC
✔ Certification: UL Listed
✔ UPC: 783643211278
✔ GTIN: 00783643211278
✔ Country of Origin: Mexico
✔ Dimensions: 5.906 x 9.843 x 6.693 (W x H x D) Inches
