Product Description:

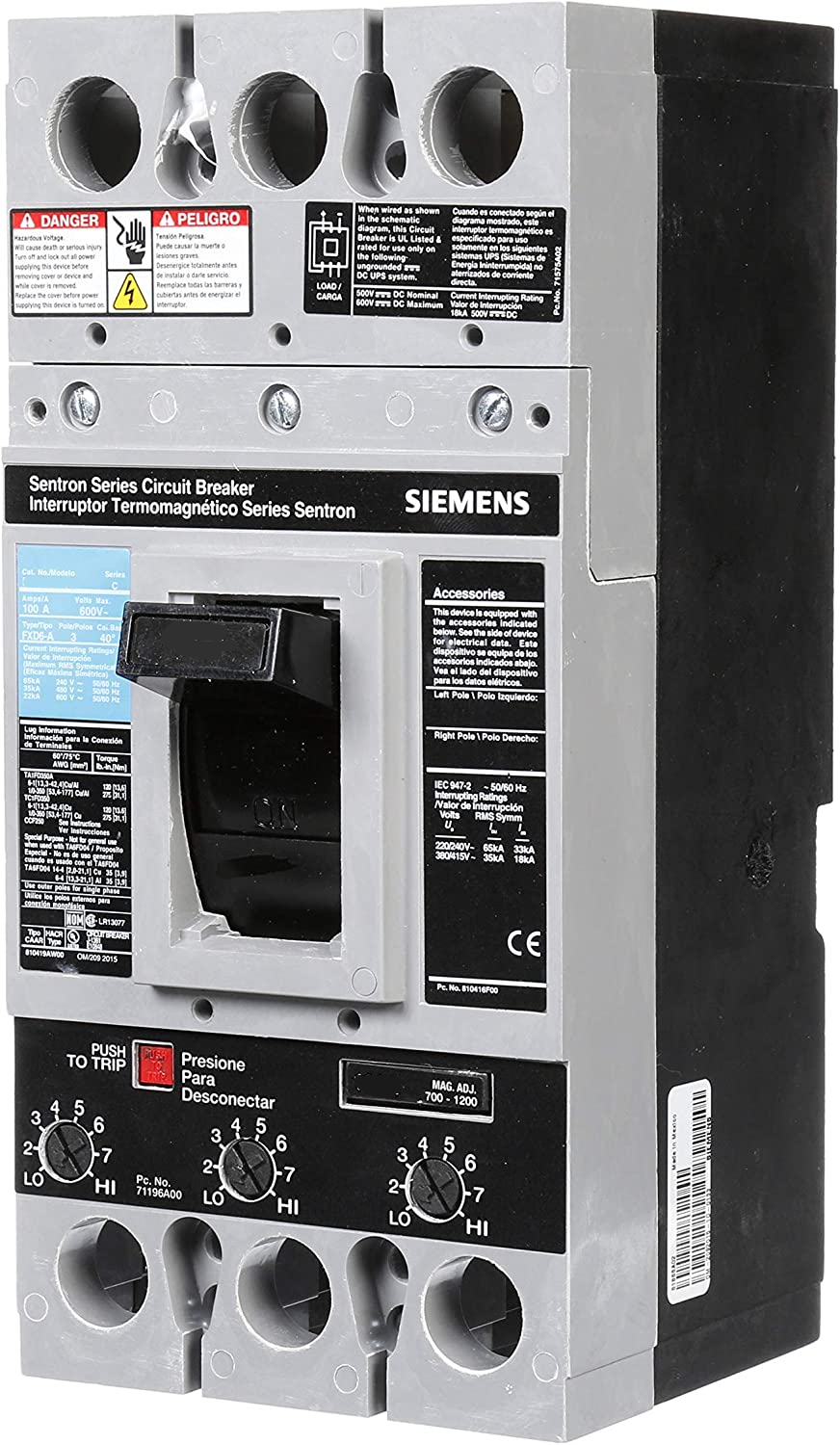

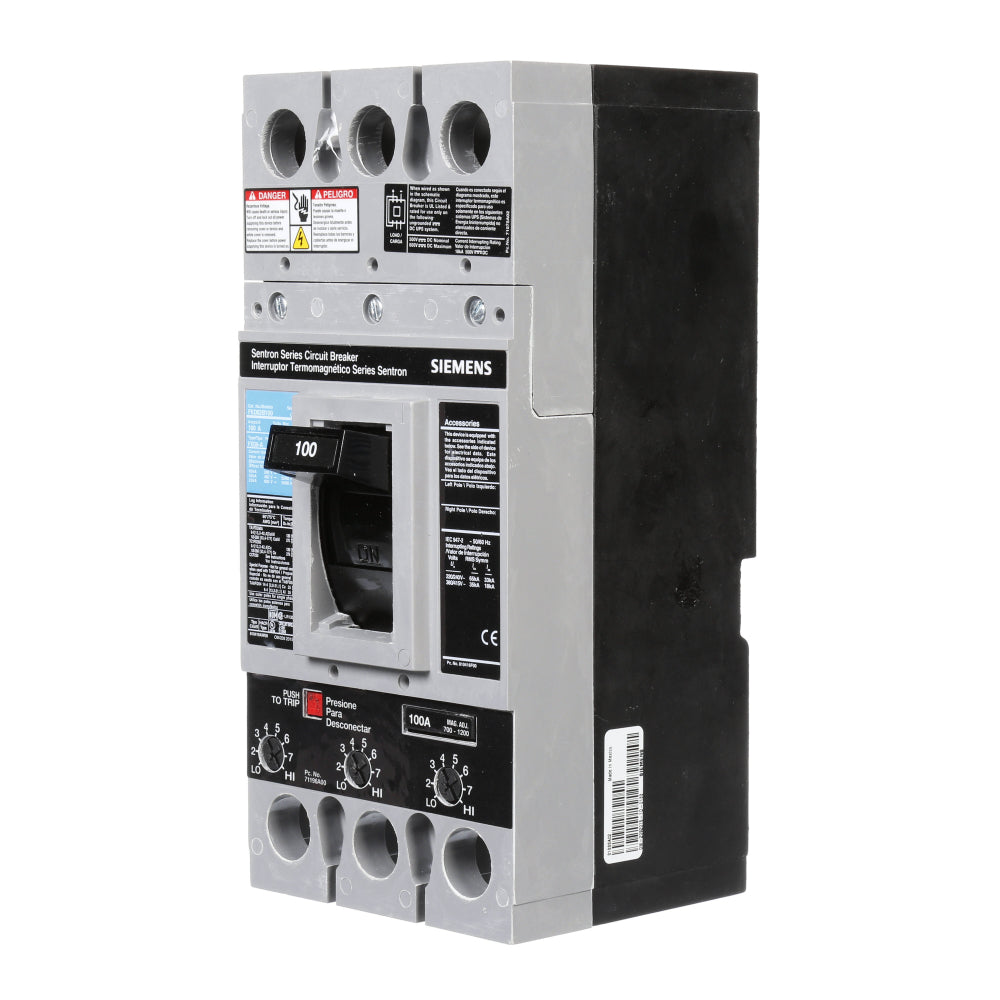

The Siemens FXD63B100 is a Molded Case Circuit Breaker from the Sentron Series. It features a 3-pole design with a 600V, 100A rating and a 35kA@480V AIC rating. This breaker uses a bolt-on connection and includes thermal magnetic protection. Lugs are sold separately.
Key Features:
✔ Part Number: FXD63B100
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Sentron Series
✔ Type: FXD
✔ Voltage: 600V
✔ Amperage: 100A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 35kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ Frame Size: 250A/FD
✔ Terminal Connection: Lug
✔ Standards: UL Listed
✔ Certification: UL Listed
✔ UPC: 783643211223
✔ GTIN: 00783643211223
✔ Country of Origin: Mexico
✔ Dimensions: 4.5 in x 9.5 in
✔ Weight: 8 lbs
