Product Description:

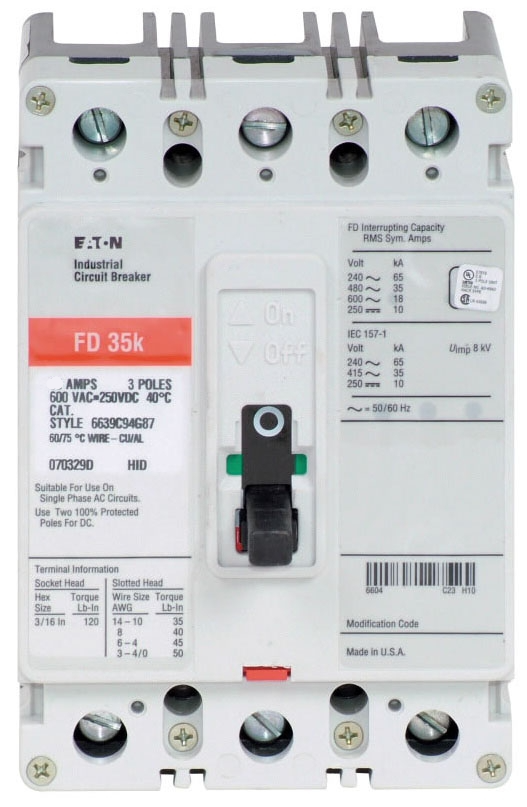

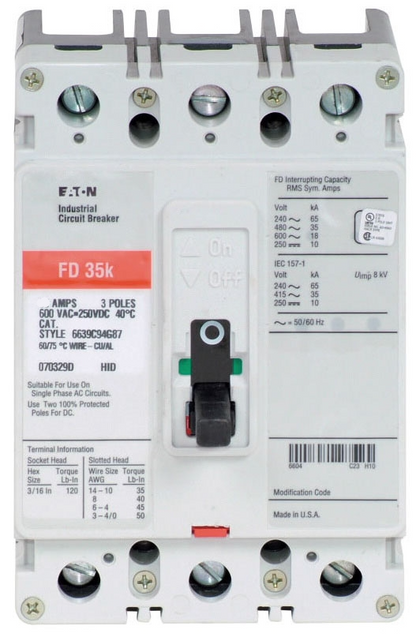

The Cutler Hammer FD3175 is a Molded Case Circuit Breaker from the Series C family. It features a 3-pole design with a 600V, 175A rating and a 35kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection for reliable performance.
Key Features:
✔ Part Number: FD3175
✔ Manufacturer: Cutler Hammer
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Series C
✔ Type: FD
✔ Voltage: 600V
✔ Amperage: 175A
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 35kA@480V
✔ Connection: Bolt-On
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Load Side Lug
✔ Frame Size: 225A/F
✔ MCM Size: Min. Wire Size 14 AWG, Max. Wire Size 1/0 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Phase Connection: ABC
✔ UPC: 786679015384
✔ GTIN: 00786679015384
✔ Country of Origin: Dominican Republic
