Product Description:

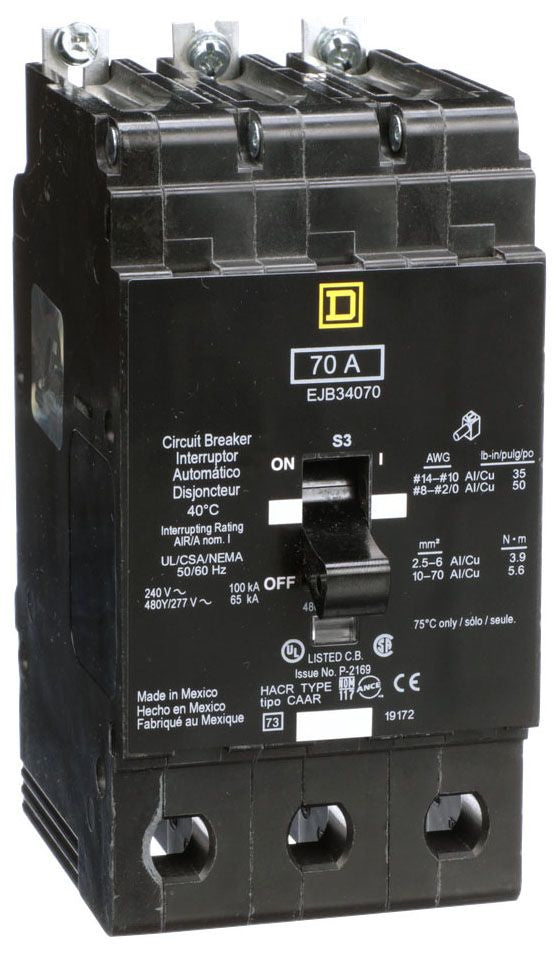

The Square D EJB34070 is a Molded Case Circuit Breaker from the EJB Series. It features a 3-pole design with a 480V, 70A rating and a 65kA@480V AIC rating. This breaker uses a Bolt-On connection and includes Thermal Magnetic protection for reliable performance. It is compatible with NF panelboards and meets cULus standards.
Key Features:
✔ Part Number: EJB34070
✔ Manufacturer: Square D
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: EJB Series
✔ Type: EJB
✔ Voltage: 480V
✔ Amperage: 70A
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 65kA@480V
✔ Connection: Bolt-On
✔ Protection: Thermal Magnetic
✔ Frame Size: J; E-Frame
✔ Wire Size: 12 AWG (Al) to 2/0 AWG (Cu/Al)
✔ Certification: cULus
✔ UPC: 785901130635
✔ GTIN: 00785901130635
✔ Country of Origin: Mexico
