Product Description:

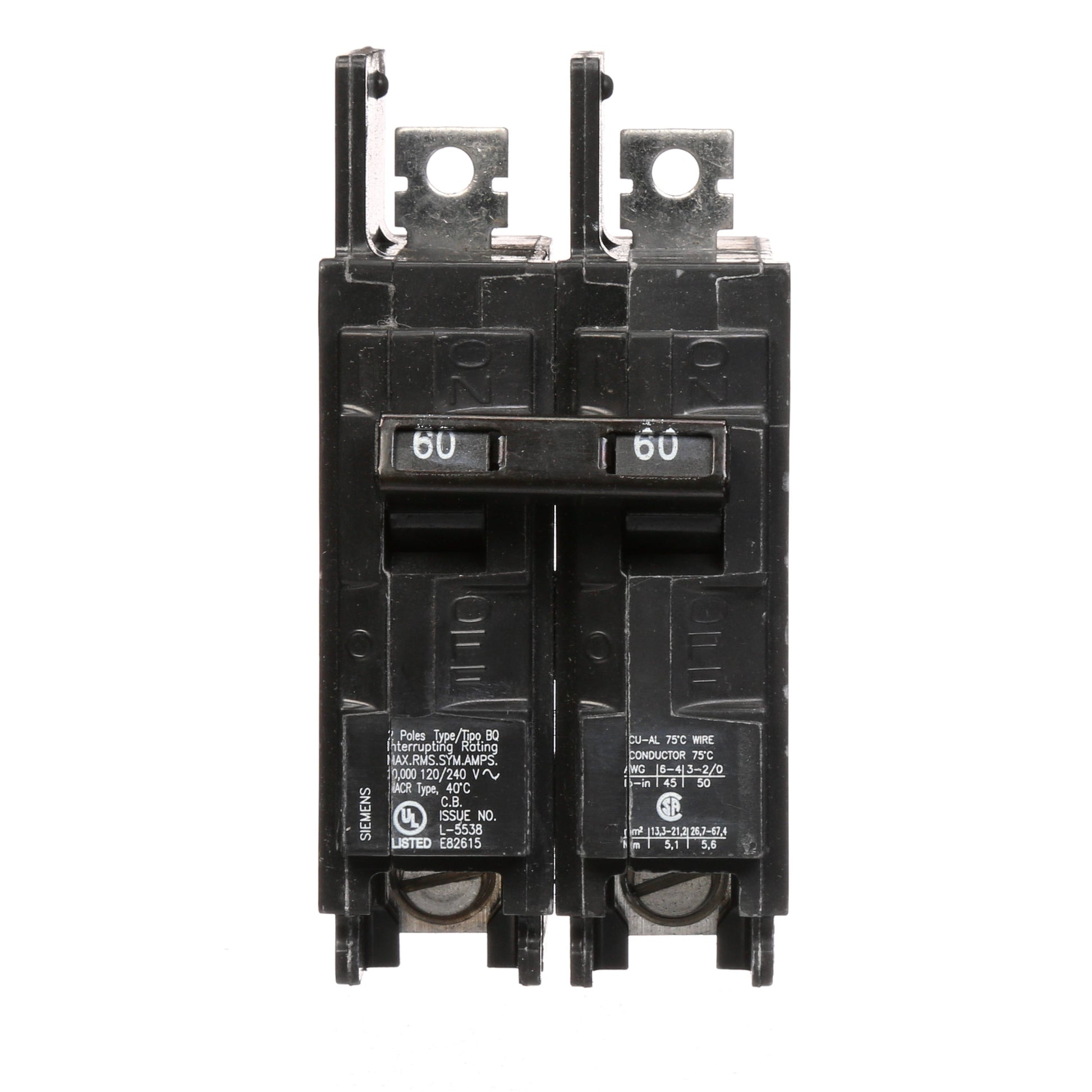

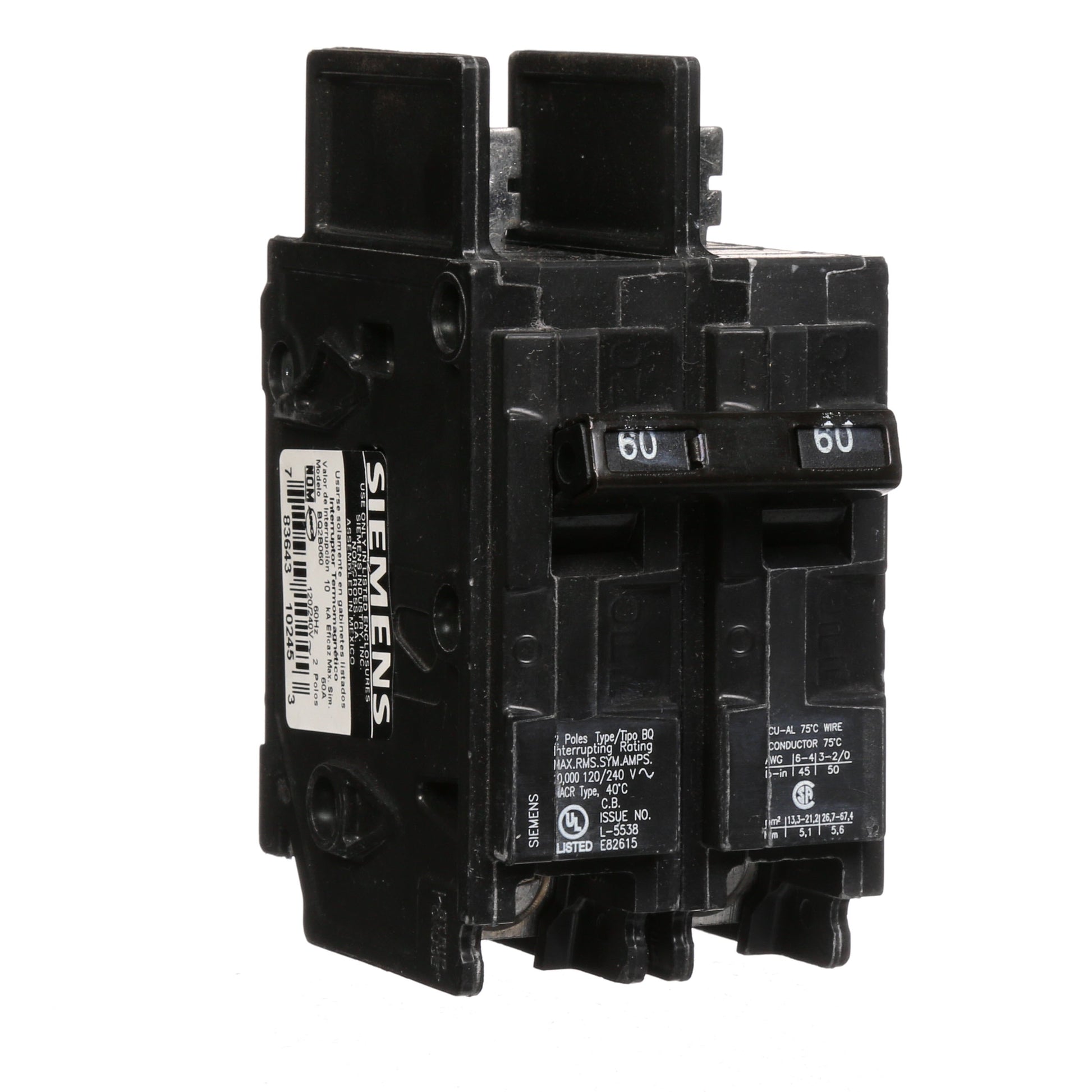

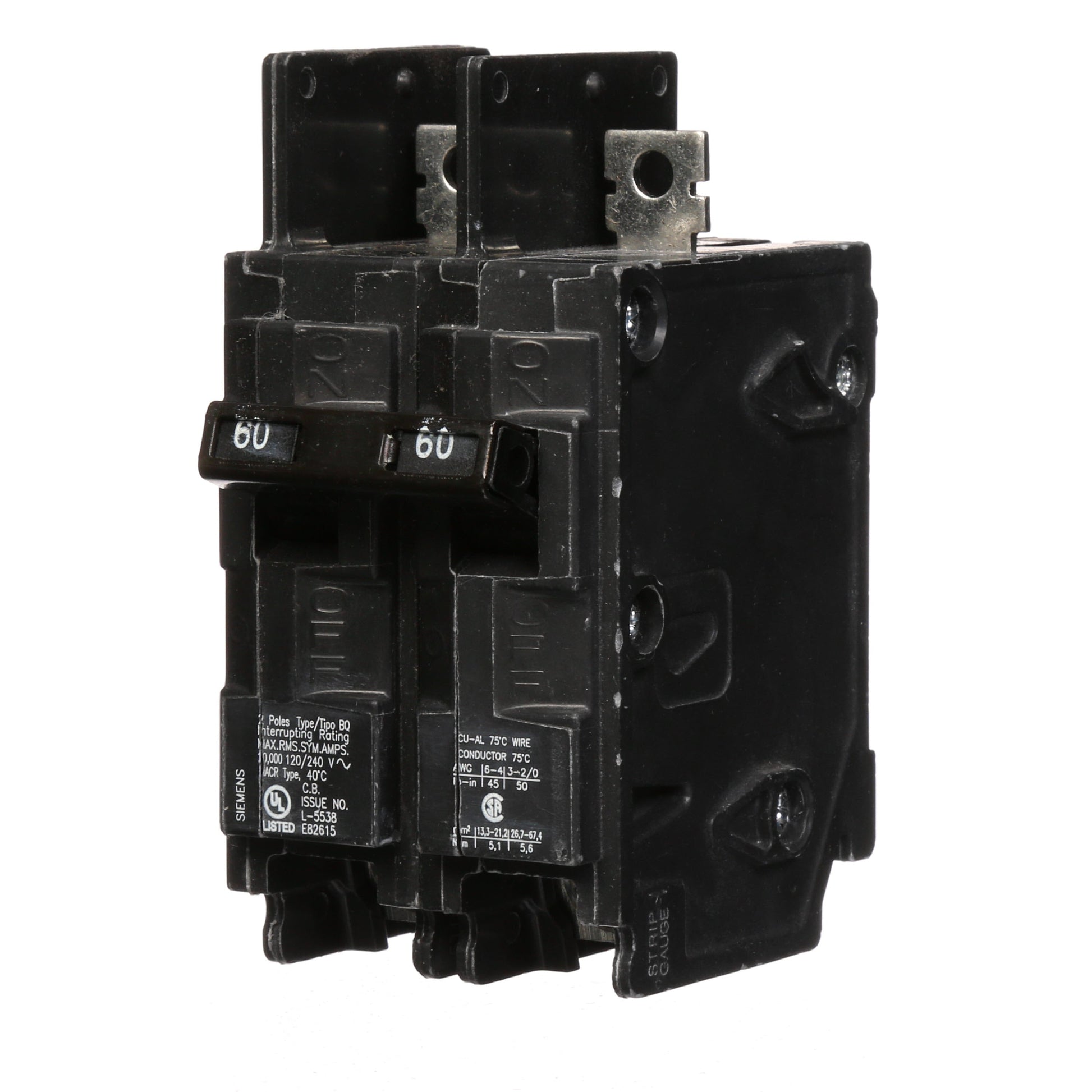

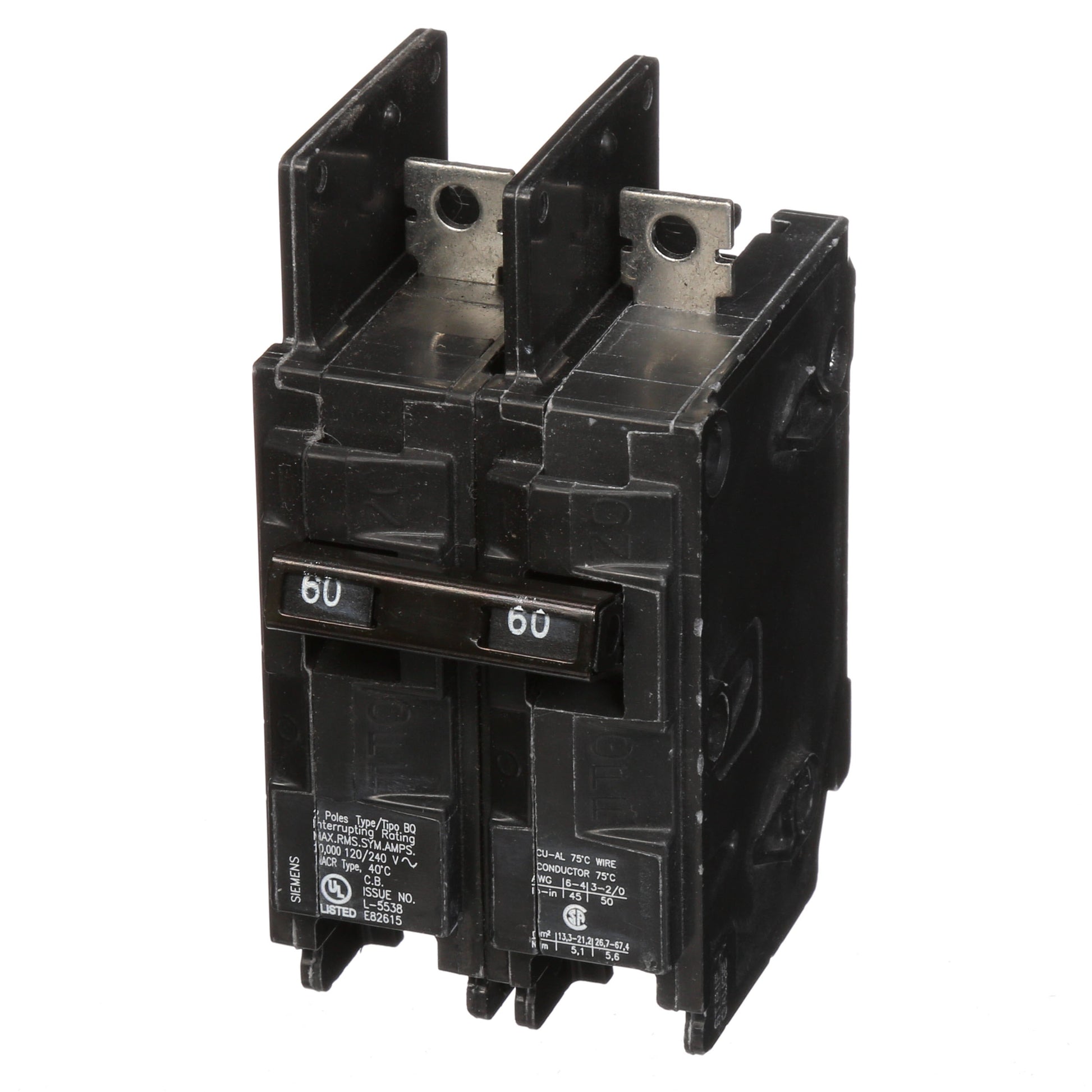

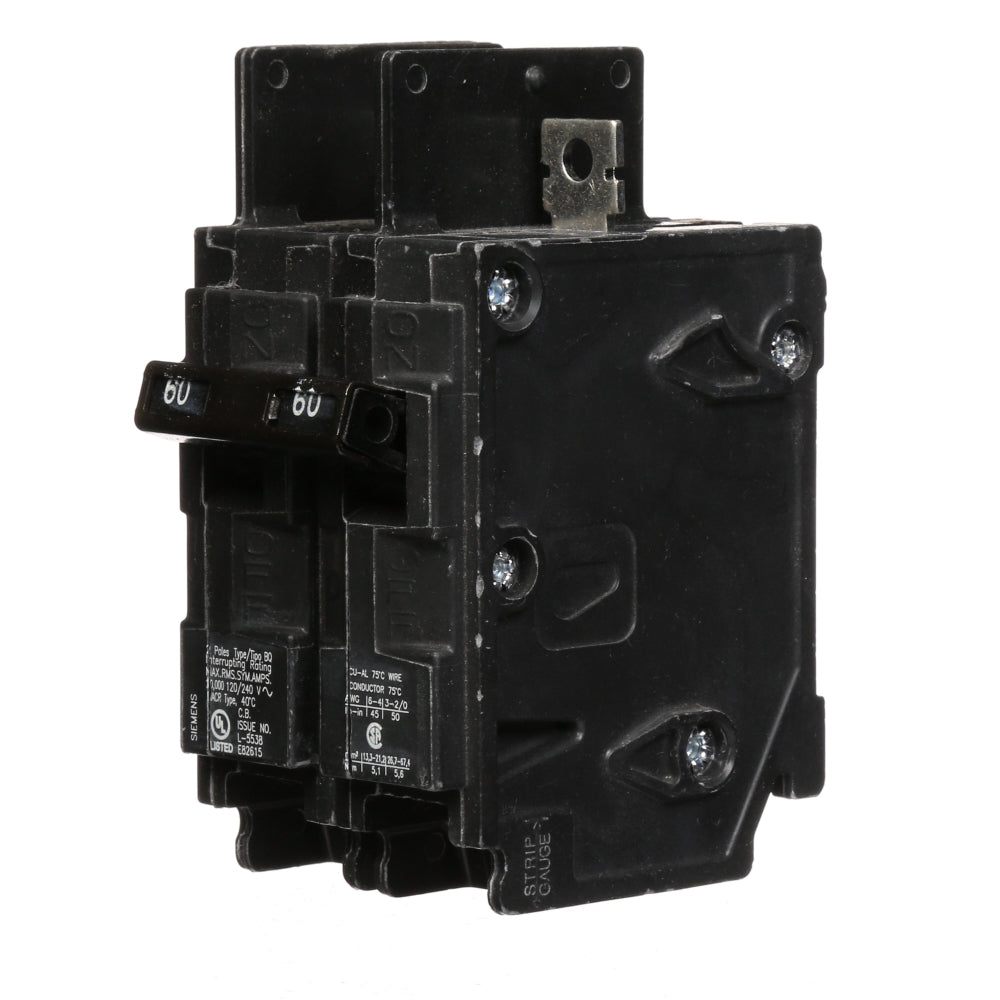

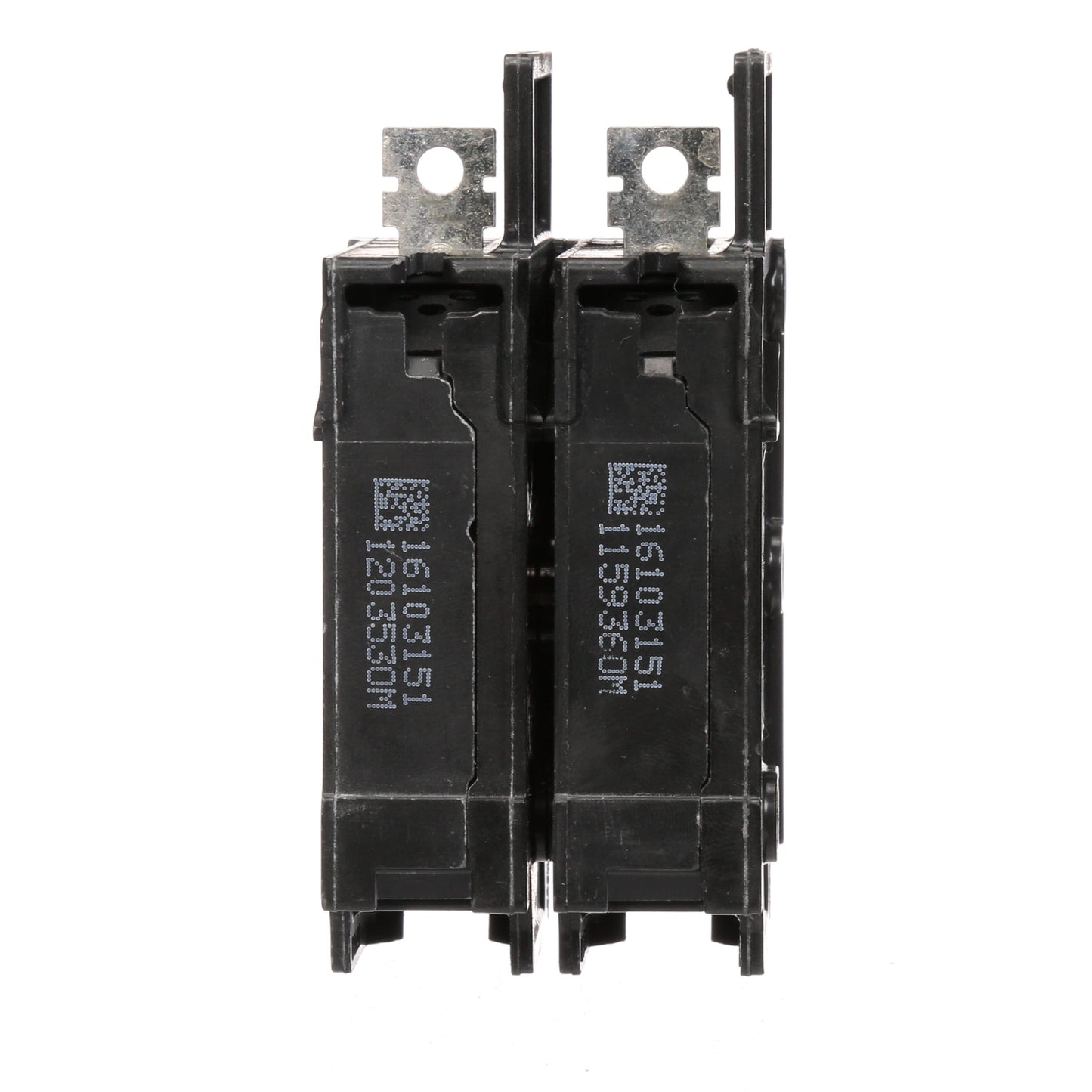

The Siemens BQ2B060 is a Molded Case Circuit Breaker from the BQ Series. It features 2 poles, 120/240 VAC voltage, and a 60 amp rating with a 10kA@240V AIC rating. This breaker uses a bolt-on connection and includes thermal magnetic protection. It is compatible with Siemens panelboards and is UL listed and HACR rated.
Key Features:
✔ Part Number: BQ2B060
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BQ Series
✔ Type: BQ
✔ Voltage: 120/240 VAC
✔ Amperage: 60
✔ Phase: 1
✔ Poles: 2
✔ AIC rating: 10kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BQ
✔ MCM Size: Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ Certification: HACR Rated, UL Listed
