Product Description:

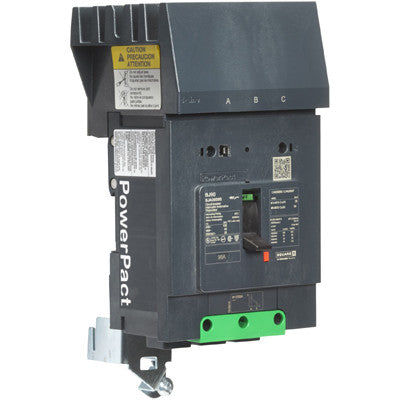

The Schneider Electric BDA36070 is a Molded Case Circuit Breaker from the Powerpact family. It features a 3-pole design with a 600V, 70A rating and an 18kA@480V AIC rating. This breaker uses I-Line connections and offers thermal magnetic protection. It supports wire sizes from 14 AWG to 2 AWG and complies with multiple industry standards.
Key Features:
✔ Part Number: BDA36070
✔ Manufacturer: Schneider Electric
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: Powerpact
✔ Type: BDA
✔ Voltage: 600V
✔ Amperage: 70A
✔ Phase: 3
✔ Poles: 3
✔ AIC Rating: 18kA@480V
✔ Connection: I-Line
✔ Protection: Thermal Magnetic
✔ Frame Size: 125A/BD
✔ Wire Size: 14 AWG to 2 AWG
✔ Certification: CSA, EN/IEC, GB, NEMA, NMX, UL
✔ UPC: 785901010883
✔ GTIN: 03606481152664
✔ Country of Origin: Mexico
