Siemens B360H Circuit Breaker | BL Series BLH 240VACV 60A

Product Description:

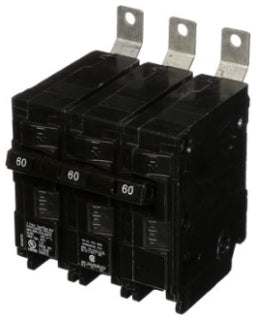

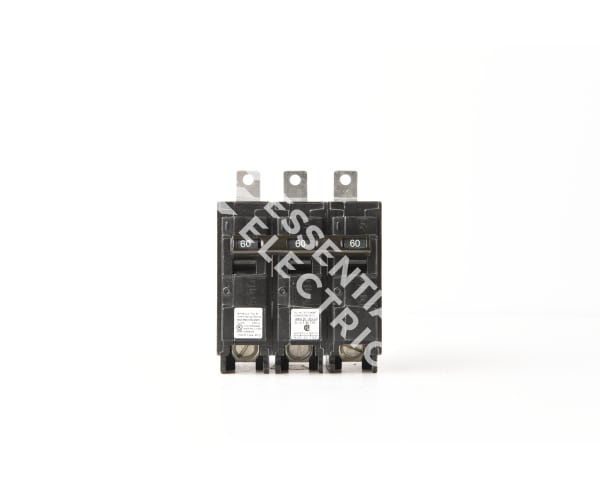

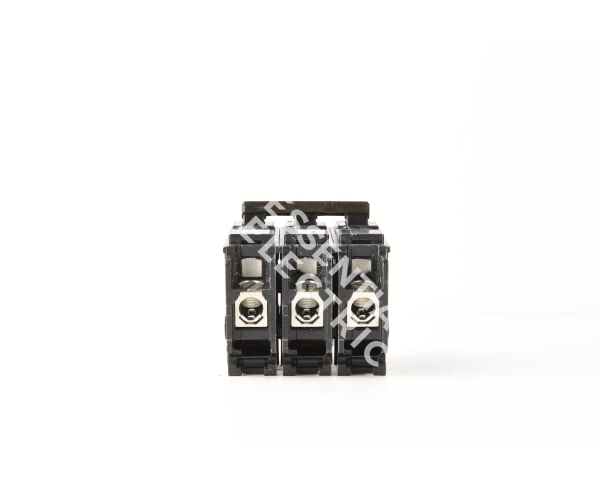

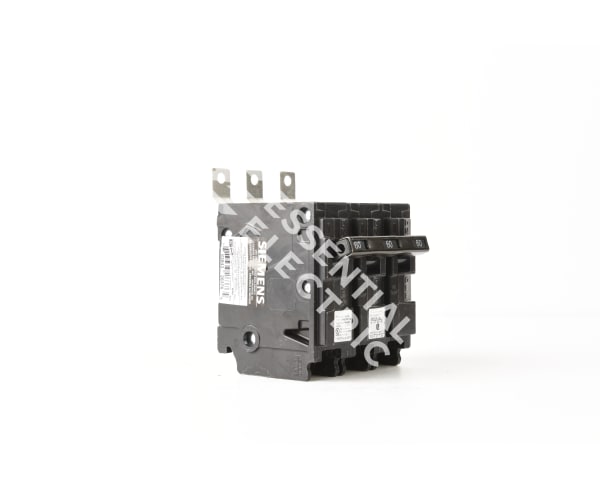

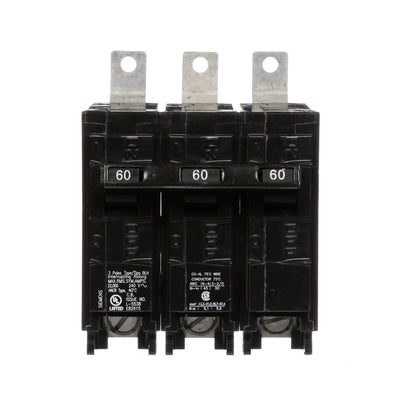

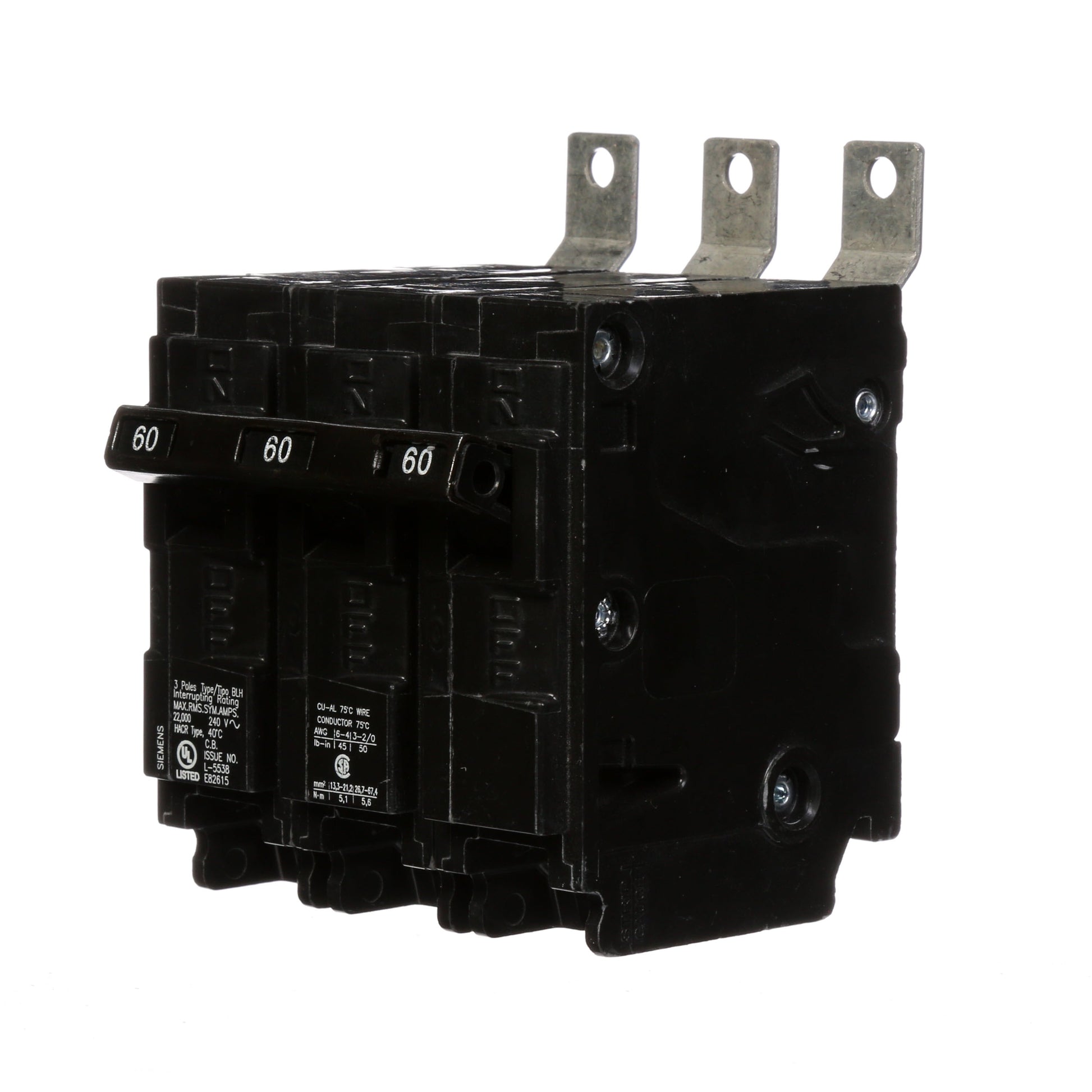

The Siemens B360H is a Molded Case Circuit Breaker from the BL Series family. It features a 3-pole design with a 240VAC voltage rating and 60 amp capacity. This breaker offers Thermal Magnetic protection and has an AIC rating of 22kA@240V. It uses a Bolt-on connection and is compatible with Siemens P1 Panelboards.

Key Features:
✔ Part Number: B360H
✔ Manufacturer: Siemens
✔ Category: Circuit Breaker
✔ Subcategory: Molded Case
✔ Family: BL Series
✔ Type: BLH
✔ Voltage: 240VAC
✔ Amperage: 60
✔ Phase: 3
✔ Poles: 3
✔ AIC rating: 22kA@240V
✔ Connection: Bolt-on
✔ Functions: LI - Long-Time and Instantaneous
✔ Terminal Connection: Lug
✔ Frame Size: 125A/BLH
✔ MCM Size: Min. Wire Size 8 AWG, Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
✔ Breaker Type: Standard
✔ Protection: Thermal Magnetic
✔ UPC: 783643264038
✔ GTIN: 00783643264038
