Product Description:

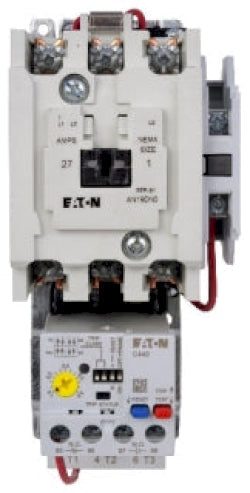

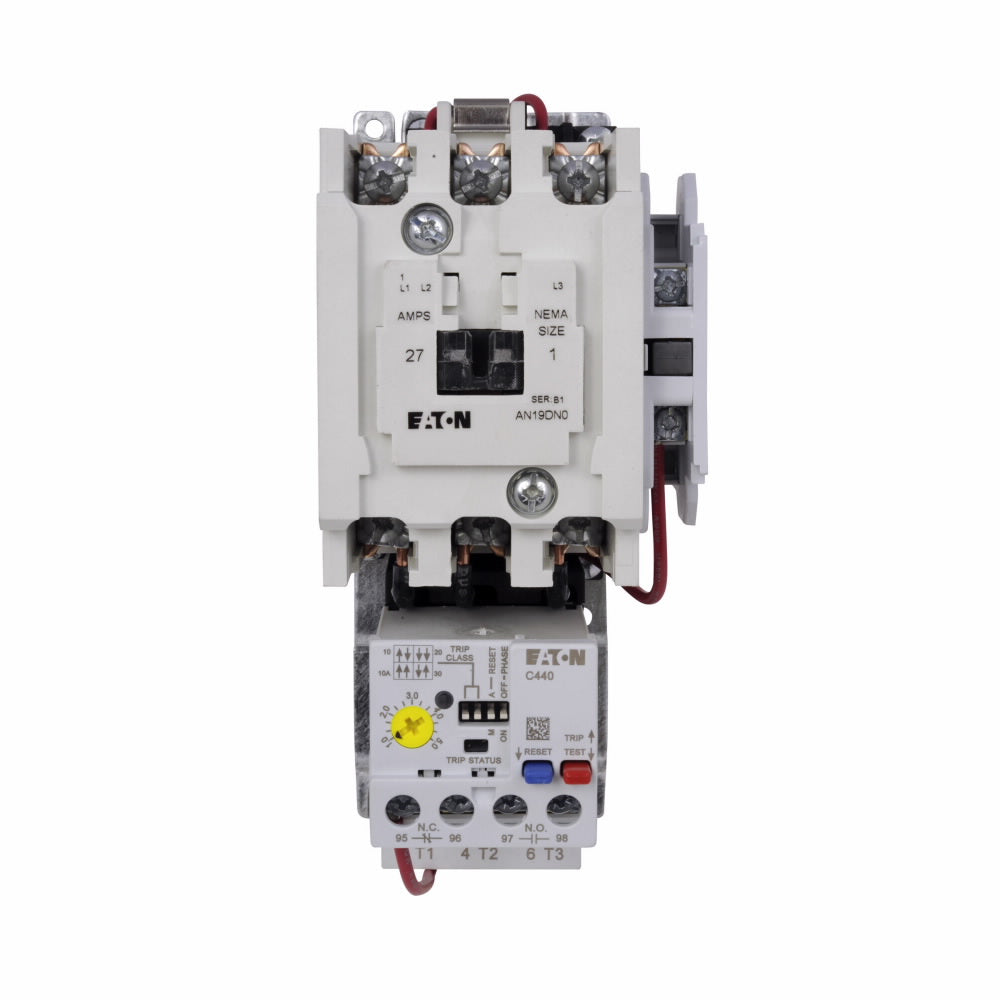

The Cutler Hammer AN19DN0A5E045 Freedom Series Motor Starter is designed for 600V 3-phase applications with a 27A current rating. It supports various horsepower ratings depending on the voltage, making it versatile for different motor control needs. Heater packs are required and must be purchased separately.
Key Features:
✔ Part Number: AN19DN0A5E045
✔ Manufacturer: Cutler Hammer
✔ Category: Motor Control
✔ Subcategory: Motor Starter
✔ Family: Freedom Series
✔ Type: AN19
✔ Voltage: 600
✔ Amperage: 27
✔ Certification: CE, CSA, UL Listed
✔ UPC: 786685417707
✔ GTIN: 00786685417707
✔ Phase: 3
✔ Poles: 3
✔ Horse Power: HP @ 3 Phase - 208V 7 1/2 hp, HP @ 3 Phase - 240V 7 1/2 hp, HP @ 3 Phase - 480V 10 hp
✔ Aux Contacts: 1NO
✔ Coil Voltage Maximum: 120
✔ Full Load Amps: 9.0 to 45 Ampere
✔ Enclosure: Nema 12
✔ Dimensions: 5 in x 5 in
✔ Weight: 4 lb
✔ Country of Origin: Dominican Republic
