Product Description:

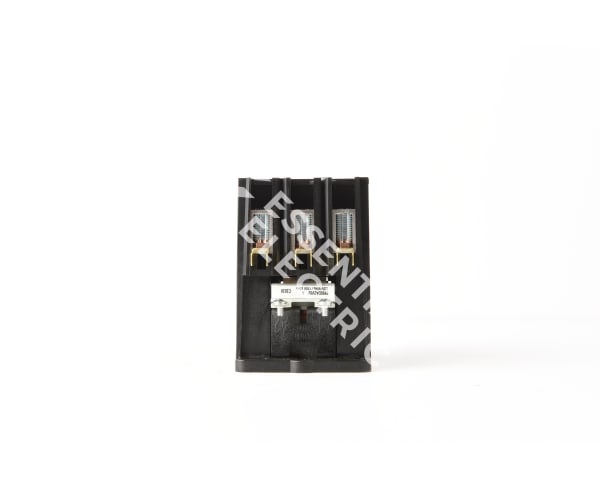

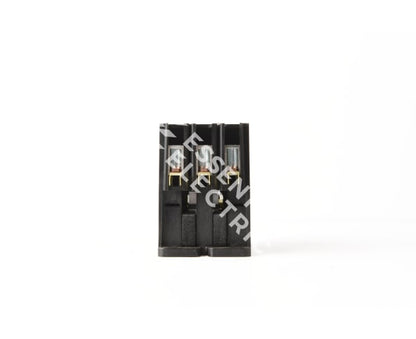

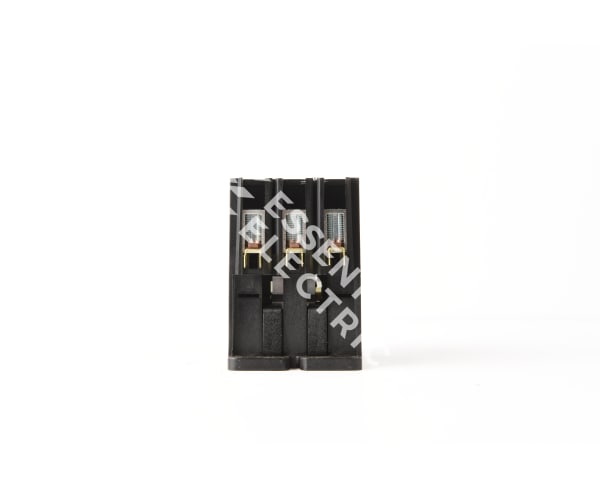

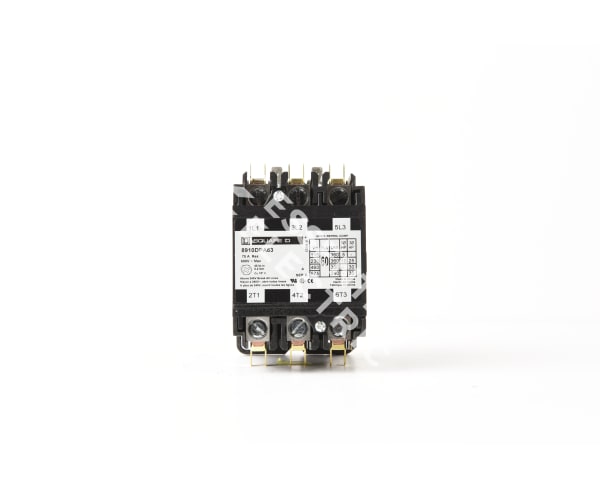

The Square D 8910DPA63V02 is a 600V, 3-phase, 60A, 3-pole contactor starter. It features a 110V coil and supports various horsepower ratings, including 5 hp at 115V AC (1-phase) and up to 30 hp at 460V AC (3-phase). This contactor is designed for motor control applications and includes 3 normally open auxiliary contacts. It is CSA, RoHS, and UL listed for safety compliance.
Key Features:
✔ Part Number: 8910DPA63V02
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA6
✔ Voltage: 600V
✔ Amperage: 60A
✔ Phase: 3
✔ Poles: 3
✔ Horsepower: 5 hp (115V AC, 1-phase), 10 hp (230V AC, 1-phase), 30 hp (460V AC, 3-phase), 30 hp (575V AC, 3-phase), 25 hp (230V AC, 3-phase)
✔ Aux Contacts: 3 NO
✔ Coil Voltage: 110V-120V
