Product Description:

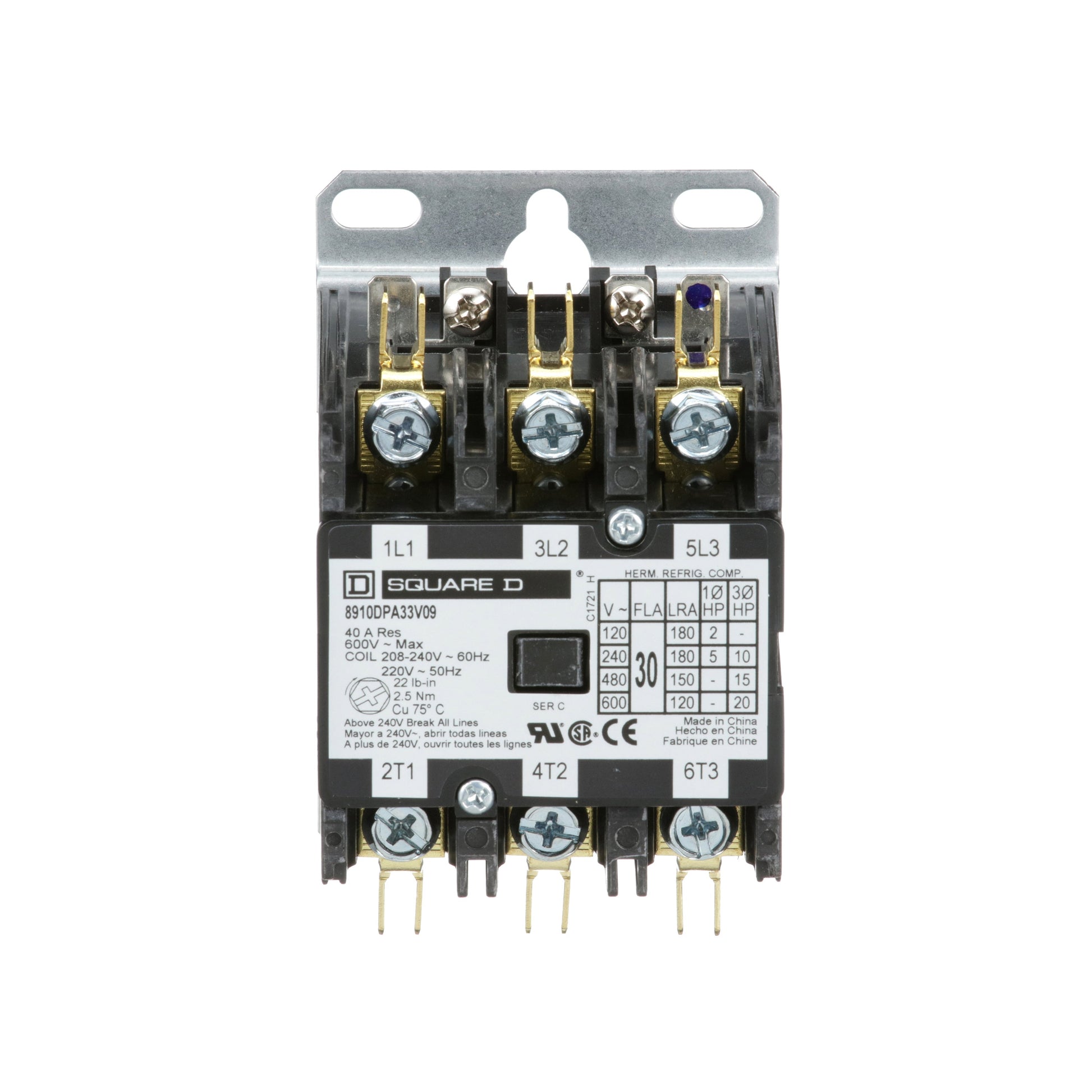

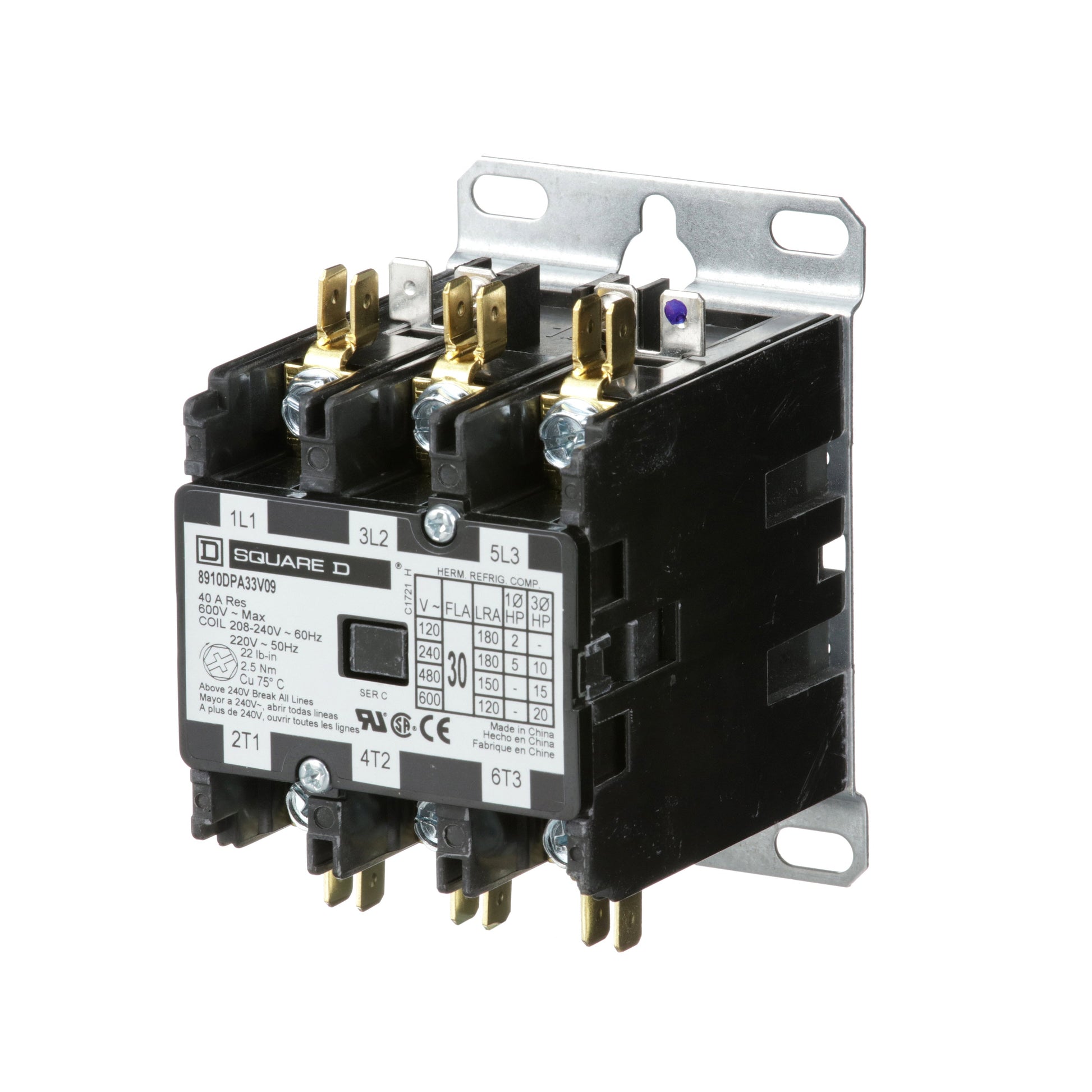

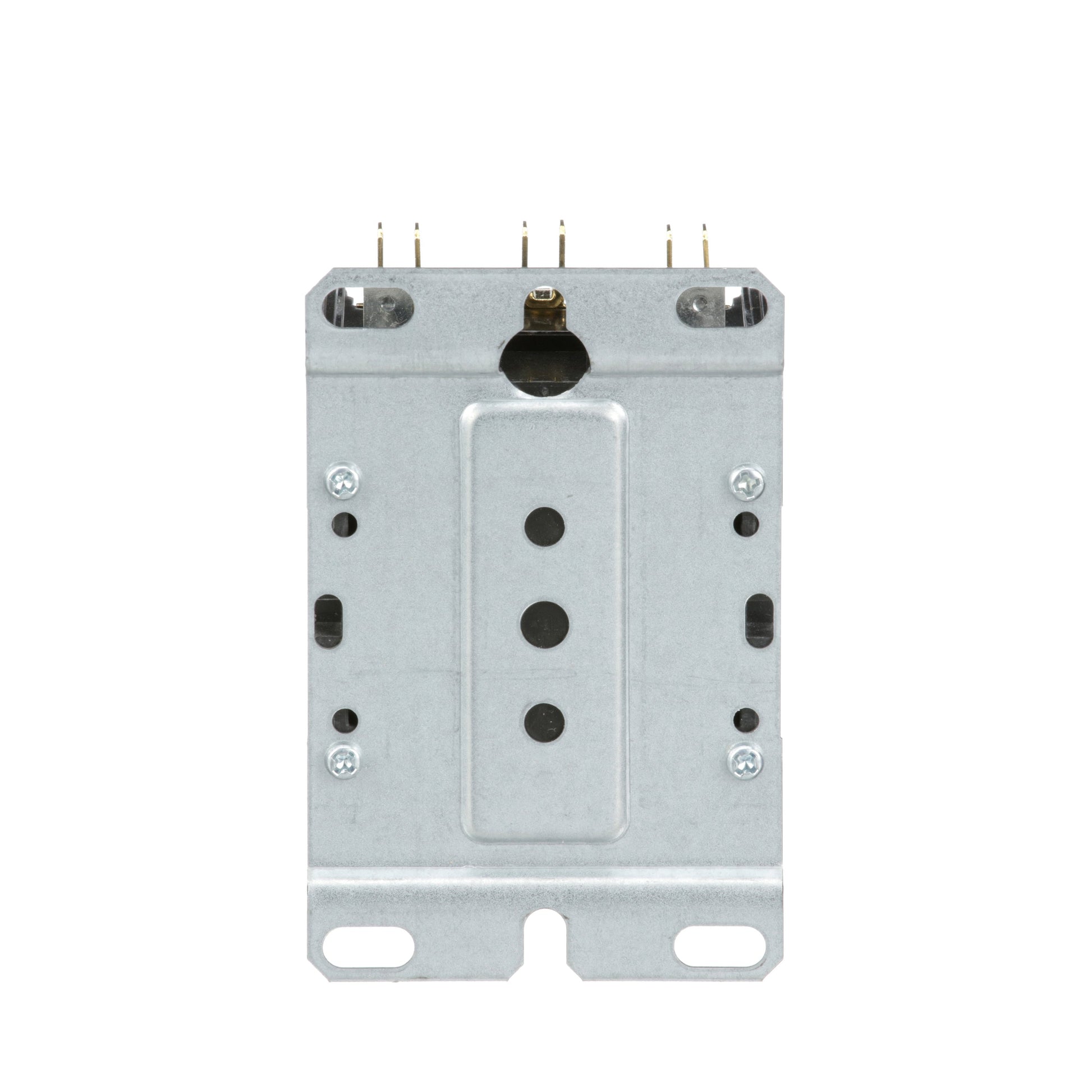

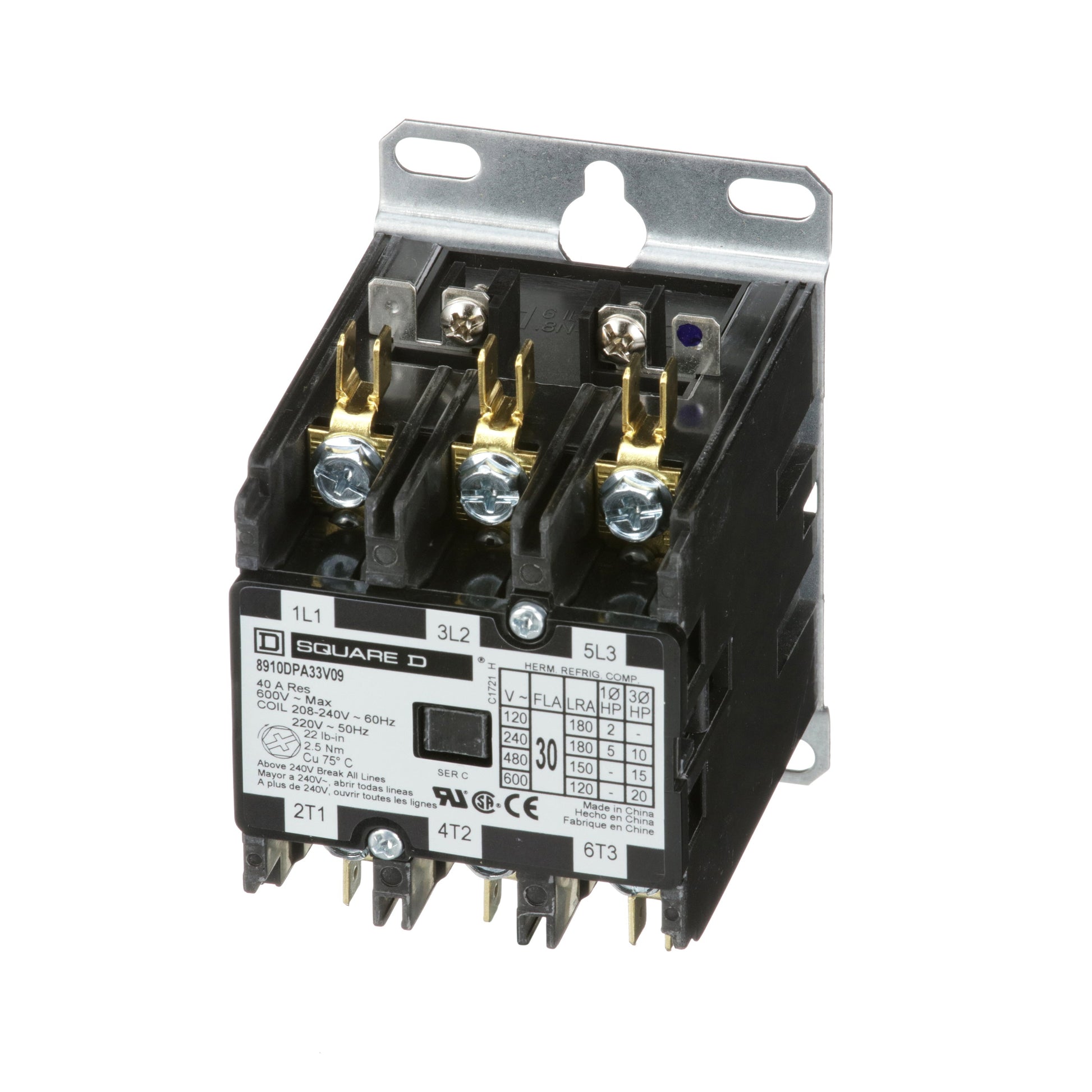

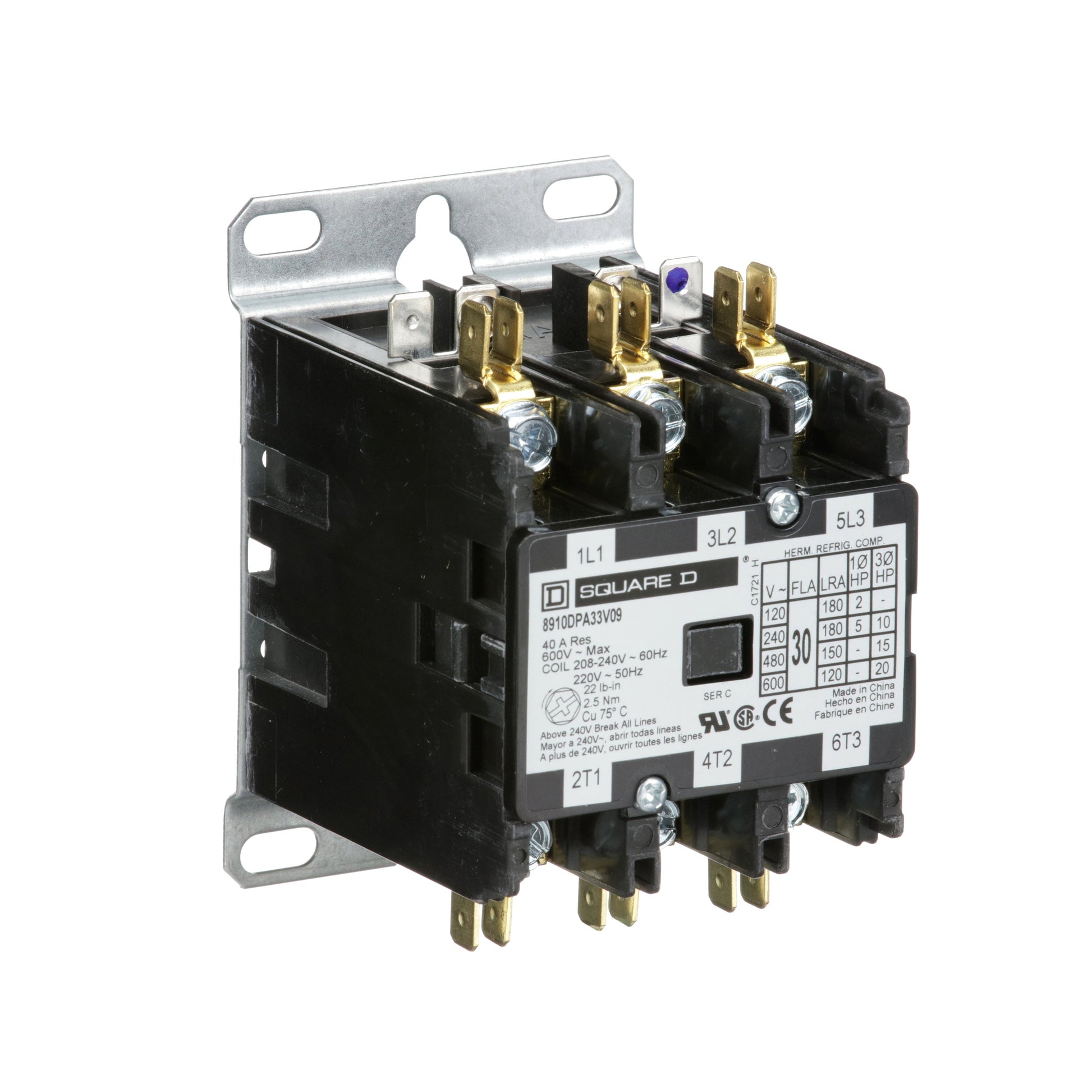

The Square D 8910DPA33V09 Class 8910 Contactor is a 3-phase, 3-pole starter rated for 600V and 30A. It features a 220V coil and supports various horsepower ratings, including 2 hp at 115V AC (1-phase) up to 20 hp at 575V AC (3-phase). This contactor includes 3 normally open auxiliary contacts and is designed for motor control applications. It is CSA, RoHS, and UL listed for safety compliance.
Key Features:
✔ Part Number: 8910DPA33V09
✔ Manufacturer: Square D
✔ Category: Motor Control
✔ Subcategory: Contactor
✔ Family: Class 8910
✔ Type: DPA
✔ Voltage: 600V
✔ Amperage: 30A
✔ Phase: 3
✔ Poles: 3
✔ Horsepower: 2 hp (115V AC, 1-phase), 5 hp (230V AC, 1-phase), 10 hp (230V AC, 3-phase), 15 hp (460V AC, 3-phase), 20 hp (575V AC, 3-phase)
✔ Aux Contacts: 3 NO
✔ Coil Voltage: 220
